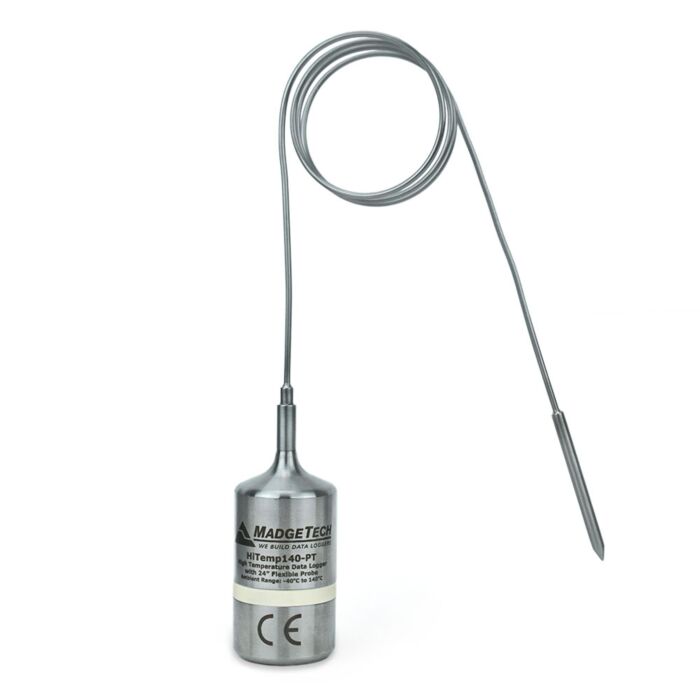

140 °C Temperature Data Logger with a 24" Flexible Probe and 1.5" Piercing Tip
The HiTemp140-PT is a high temperature, precision data logger with a bendable probe. Includes ISO17025 accredited calibration certificate.
Submersible
Available in Various Probe Lengths & Styles
Measures Temperatures from -200 °C to +350 °C
The HiTemp140-PT is a submersible, high temperature data logger with a 24 inch bendable probe. This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.
The HiTemp140-PT can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but is capable of measuring extended temperatures up to 350 °C (662 °F) (probe dependent). With a storage capacity of up to 65,536 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.
The HiTemp140-PT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
1 reading every second up to 1 reading every 24 hours
Baud Rate
125,000
Battery Life
2 years typical (1 minute reading rate) User Replaceable Battery
Material
316 Stainless Steel
HiTemp140 Pig Tail Probe Dimensions
Body: 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)
HiTemp140-PT-1: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.). Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)
HiTemp140-PT-5: Probe tip is 4.8 in x 0.125 in dia. with 1 in x 0.188 dia. handle (121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle). Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)
HiTemp140-PT-12: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.). Bendable portion is 12 in x 0.062 in dia. (305 mm x 1.6 mm dia.)
IP Rating
IP68
Submersible
Yes
Operating Environment
-40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface Package
IFC400
Approvals
CE
Temperature Sensor
100 Ω Platinum RTD
Temperature Resolution
0.01 °C (0.018 °F)
Temperature Calibrated Accuracy
±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
