MadgeTech HITEMP140-M12
Order #: HITEMP140-M12
Mfg #: 900227-00
Product Highlights

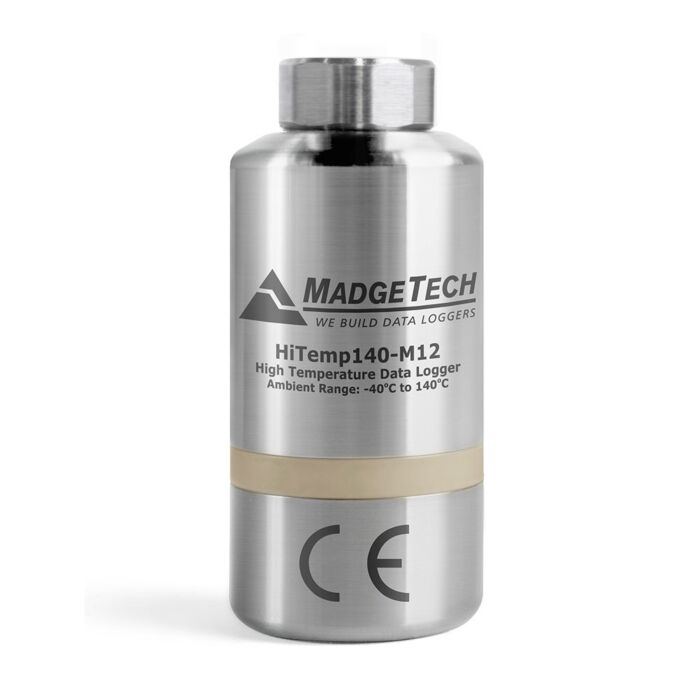

140 °C Temperature Data Logger with a built in M12 Probe Connector
The HiTemp140-M12 is a high temperature data logger with an M12 probe connector. Includes standard calibration certificate.
- Memory Capacity of 43,000+ Readings
- Accepts a Variety of M12 RTD Probe Styles
- Capable of Measuring Temperature up to 850 °C
The HiTemp140-M12 is a high temperature data logger featuring an M12 probe connector. With the ability to change probes as needed, this device satisfies a multitude of application needs.
Compatible with a wide variety of M12 RTD probe styles, the HiTemp140-M12 is capable of measuring up to 850 °C (1562 °F) (probe dependent). The HiTemp140-M12 records and stores up to 43,690 time stamped readings and can be programmed for immediate start or delayed start up to 18 months in advance.
The HiTemp140-M12 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 43,690 readings |
| Reading Rate | 4 readings per second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate) |
| User Replaceable Battery | |
| Material | 316 Stainless Steel |
| Dimensions | 2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm) |
| Key Ring End Cap | Key ring replaces standard bottom. Thru-hole: 0.150" |
| IP Rating | IP40 - logger alone (with no probe connected). The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K). |
| Submersible | Yes (with probe attached) |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
