MadgeTech ELEMENT HT
Order #: ELEMENT-HT
Mfg #: 901423-A7
Product Highlights

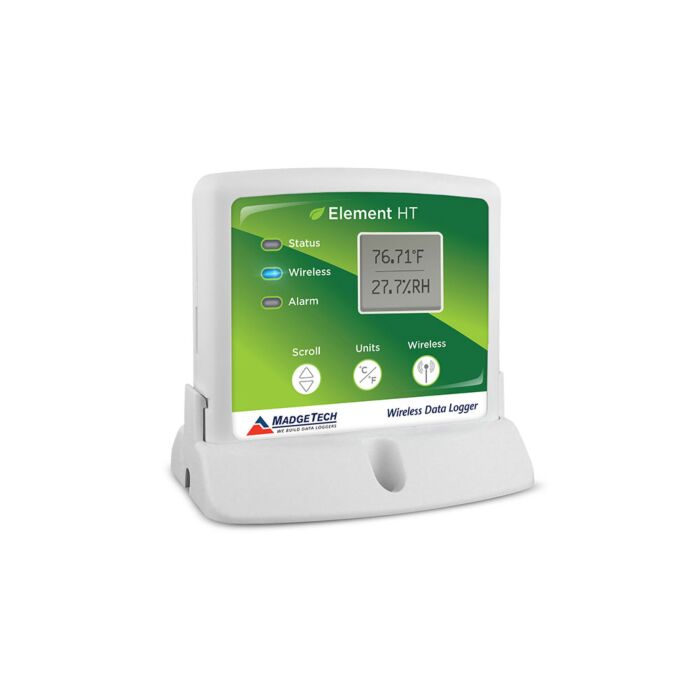

Wireless Humidity and Temperature Data Logger with LCD
The Element HT is a wireless temperature and humidity data logger for agricultural applications. Includes ISO/IEC 17025 accredited calibration certificate.
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Alerts
The Element HT is a wireless data logger that measures and records humidity and temperature for agricultural applications. It's the perfect solution for creating a real-time environmental profile in order to maintain proper grow conditions.
This device features an LCD screen which provides instant access to current readings, as well as minimum, maximum, and average statistics. Equipped with user-programmable alarms, the Element HT will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.
The Element HT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The Element HT is also MadgeTech Cloud Services ready, providing users the ability to monitor real-time data remotely on any internet enabled device, from anywhere in the world.
| Memory | 16,128 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 3 years typical at a 1 minute reading rate |
| Material | ABS plastic |
| Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only |
| IP Rating | IP22 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
