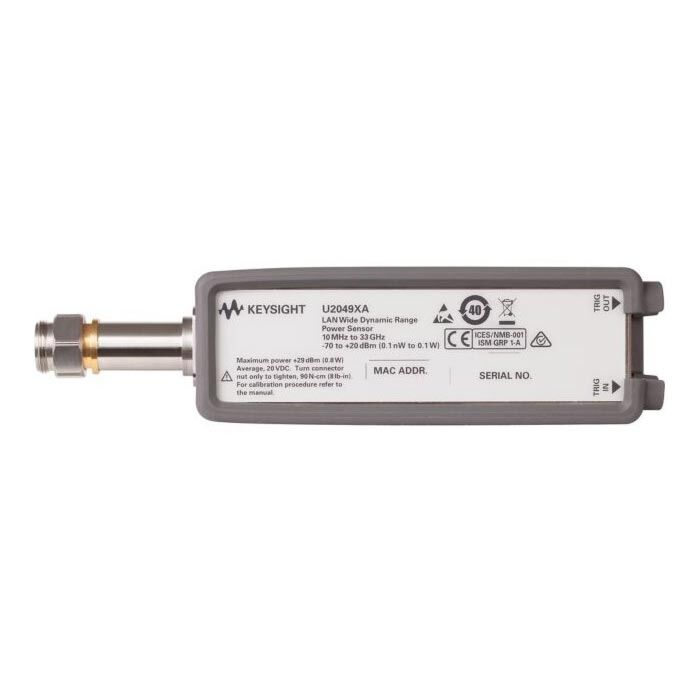

Keysight U2049XA LAN Wide Dynamic Range Power Sensor, 10MHz-33GHz
LAN Wide Dynamic Range Power Sensor,10MHz-33GHz

Order #: U2049XA

Mfg #: U2049XA

Questions about availability or need help? Contact Us:

(800) 633-0561
$18,524.00

Keysight U2049XA LAN Wide Dynamic Range Power Sensor, 10MHz-33GHz

LAN Wide Dynamic Range Power Sensor,10MHz-33GHz

Order #: U2049XA

Mfg #: U2049XA

$18,524.00
Availability: Ships in 4-6 weeks

Product Highlights

The U2049XA LAN power sensor, 10 MHz to 6 GHz / 33 GHz, comes with a dynamic range spanning 90 dB, this sensor is ideal for fault detection and monitoring of satellite systems. The U2049XA power sensor comes with optional thermal vacuum compliant option (Option-TVA) for use within a thermal vacuum chamber. Together with internal zero and calibration and best-in-class long term drift performance, the U2049XA enables automated performance monitoring without needing human intervention.

  • Wide dynamic range (-70 to +20 dBm) for small signal measurements
  • LAN/ Power-Over-Ethernet (PoE) connectivity for long distance remote monitoring (up to 100 meter)
  • TVAC compliant for operation in vacuum
  • Best-in-class long term drift performance
  • Internal zero and automatic calibration saves time and reduces measurement uncertainty
  • Easy measurement start-up with new intuitive BenchVue software
  • Includes BV0007B Power Meter app
