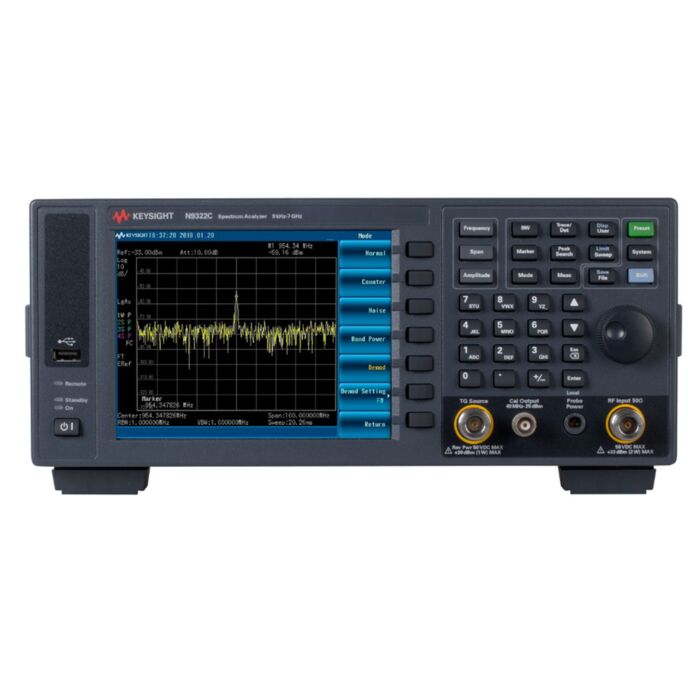

Keysight N9322C Basic Spectrum Analyzer, (BSA) 9kHz to 7GHz

Product Highlights

The N9322C Basic Spectrum Analyzer is a value-priced, channel power measurement spectrum analyzer with general-purpose functionality for the 9 kHz to 7 GHz frequency range. You can rely on the N9322C basic spectrum analyzer for proven testing efficiency, usability, and the flexibility to adapt to new requirements.

• Quickly uncover key insights through fast, value-priced, general purpose performance up to 7 GHz with -152 dBm DANL and +/-0.6 dB overall amplitude accuracy
• Achieve straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys
• Implement up to 20 pre-defined measurements automatically and reduce test setup time by 95% with the task planner feature
• Enjoy industry standard SCPI language support and USB and LAN connectivity

General Purpose Functionality at an Affordable Price

Whether your application is consumer electronics R&D, manufacturing, or bench repair, you need a spectrum analyzer that provides general purpose functionality at an affordable price. With the N9322C basic spectrum analyzer you can:

• Set up to 7 of your most frequently used measurements with user-definable softkeys
• Make signal measurements, such as channel power (CHP), simple and intuitive with a one-button power suite
• Gain more insight into AM/FM and ASK/FSK signal analysis with the demodulation mode
• Frequency: 9 kHz to 7 GHz
• DANL @1 GHz: -152 dBm
• Maximum Analysis Bandwidth: 1 MHz
• Phase Noise @1 GHz (10 kHz offset): -90 dBc/Hz
• Type: Benchtop

Each Unit Includes

• three-year warranty
