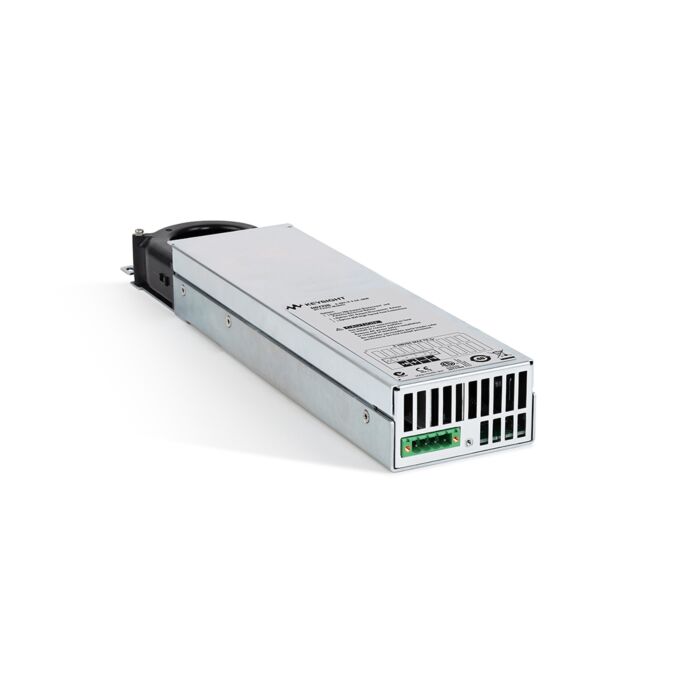

Keysight N6733B DC Power Module, 20V, 2.5A, 50W, N6700 Series

Product Highlights

• Guide to Agilent Power Supplies

  Application Notes:

  - Create Complex Sequences with a DC Power Supply

  - Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit

  - Achieve Cleaner Power Signals by Minimizing Common Sources of Noise

• Voltage: 20 V
• Current (derated 1% per °C above 40°C): 2.5 A / 5 A
• Power: 50 W / 100 W
• Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
• Voltage: 0.1% + 20 mV
• Current: 0.15% + 20 mA
• Ripple & Noise from 20 Hz to 20 MHz
• CV peak-to-peak: 14 mV
• CV rms: 3 mV
• (PARD) CC rms: 2 mA
• Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
• Voltage: 9 mV
• Current: 2 mA
