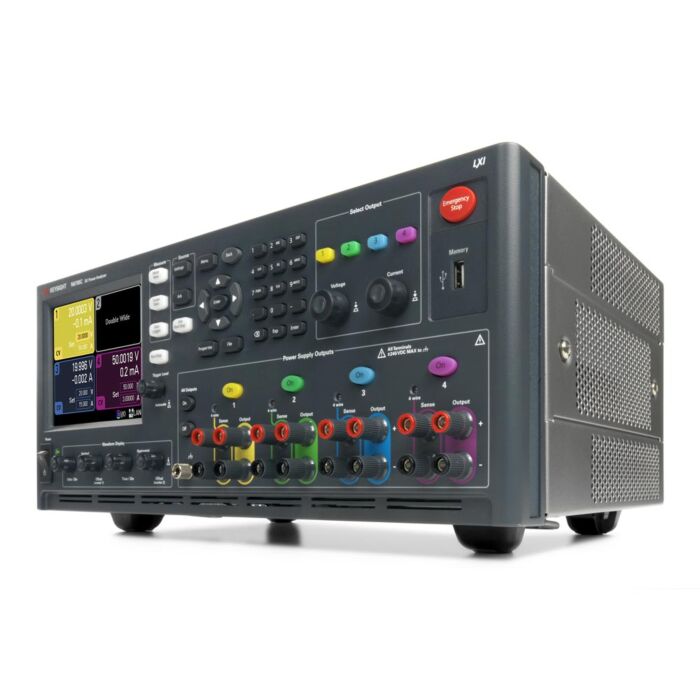

Keysight N6715C Build-to-Order DC Power Analyzer System
Order #: N6715C
Mfg #: N6715C
Product Highlights
The N6715C DC Power Analyzer is a build-to-order system that is shipped as a fully tested and assembled DC Power Analyzer. Each N6715C consists of one N6705C mainframe (described below) plus 1 to 4 DC Power Modules and up to 600 W total DC Power Module output power. To specify which modules you want installed in the N6715C, modules are ordered as options to the N6715C.
The N6705C offers flexible configuration to meet your power sourcing and analysis requirements. The N6705C is a 4-slot mainframe that accepts up to 4 DC Power Modules, and up to 600 W total DC Power Module output power. The modules are ordered separately.
N6705C accepts the same modules as N6700 Modular Power System, with over 30 modules to choose from. Basic sources for the N6705C include: 50 W, 100 W, and 300 W; up to 150 V, up to 50 A. High-performance sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Precision sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Source/Measure units for the N6705C include: 20 W; up to 20 V, up to 3 A. Each module includes built-in voltmeter, ammeter, scope, arbitrary waveform generator, and data logger functions.
- 4-slot mainframe holds up to 600 W of total power and up to 4 modules. More than 30 DC power modules to choose from (modules ordered separately)
- Voltmeter accuracy: Up to 0.025% + 50 µV, up to 18 bits
- Ammeter accuracy: Up to 0.025% + 8 nA, up to 18 bits
- Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W
- Scope function: Digitizes voltage and current at up to 200 kHz, 512 kpts, up to 18 bits
- Data logger function: Measurement interval from 20 µs to 60 s, max of 500 M readings per datalog
- 4 GB of non-volatile data storage for data log, scope traces, instrument settings
- Easy to use R&D tool for sourcing and measuring DC voltage and current into the DUT
- Integrates capabilities of up to 4 Power Supplies, DMM, Scope, Arb and Data Logger
- Access all capabilities without programming; either use the front panel controls or the 14585A Control and Analysis Software
- Intuitive, dedicated physical controls for common functions
- Large color graphics display for easy viewing of complex data
- Connections and controls color-coded to the display for fast and error-free setup
- Programmable via standard GPIB, LAN and USB; LXI Compliant
-
