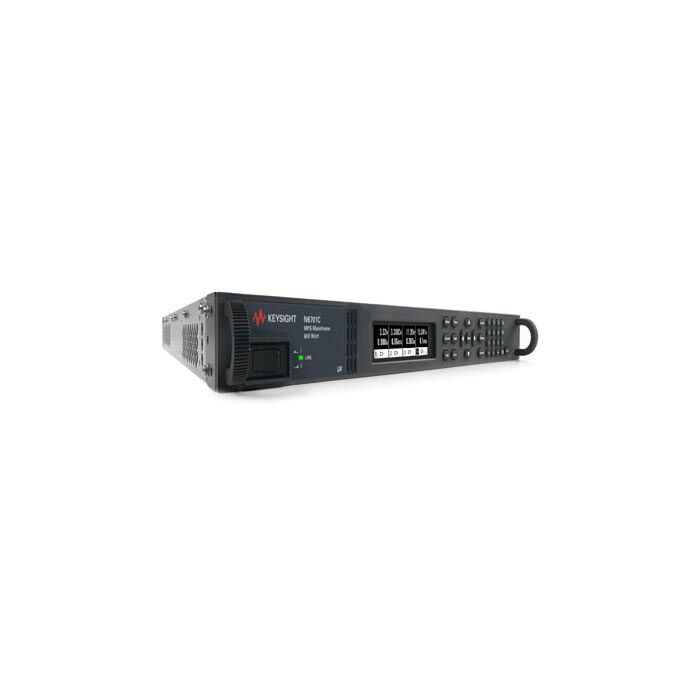

Keysight N6711C Custom-Configured Modular Power System, 600W, GPIB, LAN, USB, LXI

Keysight N6711C Highlights

The MPS (Modular Power System) power supplies series of N6700C Keysight (formerly Agilent's Electronic Test) is a modular configuration of power supply with a height of only one height unit for multiple applications in laboratory and production environments. Thanks to the wide selection of different power supply modules, the N6700C Modular Power Supply is ideally suited to any user application.

For integration into test benches and remote control applications via a PC, the N6700 power supply can be controlled via the standard USB, GPIB or LAN interface. The N6700 is fully LXI compatible and offers an integrated web server for remote control over LAN.

• Modular design, max. 4 DC power supply modules possible
• Maximum output power 400W for all outputs common
• Over 30 DC power modules up to max. 150V / 50A available
• 4 outputs with fine sense (sense) for the test voltage supply
• Parallel / serial switching of outputs possible
• Readback of current and voltage (integrated in power supply modules)
• Memory for device settings
• Synchronization to other measuring devices via trigger inputs and outputs
• Protection functions can be set for all outputs (overvoltage, overcurrent and overtemperature protection)
• Off / On Switch for outputs (optional for the individual DC power modules)
• Temperature controlled fan
• Interfaces: USB 2.0, GPIB interface, LAN interface
• LXI Class C compatible
• Built-in web server for remote control
• Dimensions: B432.5 x D 549.7 x H44.45 mm (19 inches - 1HE)
• Weight with 4 DC power supply modules: 12.73 kg
• Warranty: 3 years
