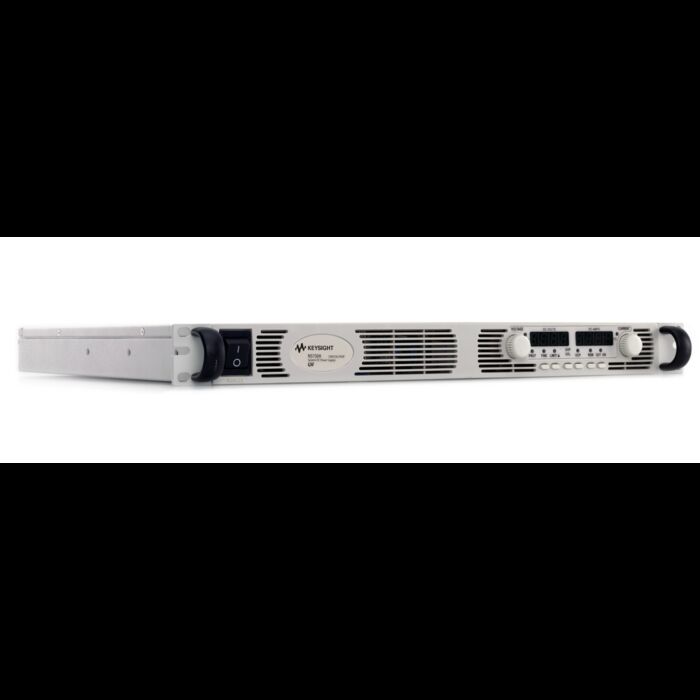

Keysight N5750A DC Power Supply, 150V, 5A, 750W GPIB, LAN, USB, LXI
DC Power Supply,150V,5A,750W GPIB,LAN,USB,LXI
Order #: N5750A
Mfg #: N5750A
$4,745.00
Keysight N5750A DC Power Supply, 150V, 5A, 750W GPIB, LAN, USB, LXI
DC Power Supply,150V,5A,750W GPIB,LAN,USB,LXI
Order #: N5750A
Mfg #: N5750A
$4,745.00
Availability: Ships in 4-6 weeks
Product Highlights
Guide to Agilent Power Supplies
Application Notes:
- Create Complex Sequences with a DC Power Supply
- Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit
- Achieve Cleaner Power Signals by Minimizing Common Sources of Noise
- Output Ratings
- Voltage: 150 V
- Current: 5 A
- Power: 750 W
- Programming Accuracy
- Voltage 0.05%+ 75 mV
- Current 0.1%+ 5 mA
- Ripple & Noise
- CV p-p: 100 mV
- CV rms: 12 mV
- CC rms: 18 mA
- Load Regulation
- Load Effect (change from 10% to 90%) Voltage: 17 mV
- Load Effect (change from 10% to 90%) Current: 6 mA
- Load Transient Recovery Time: ≤2 ms
- Includes BV0003B Power Supply app
