Order #: N2804A-RENT2
Mfg #: N2804A

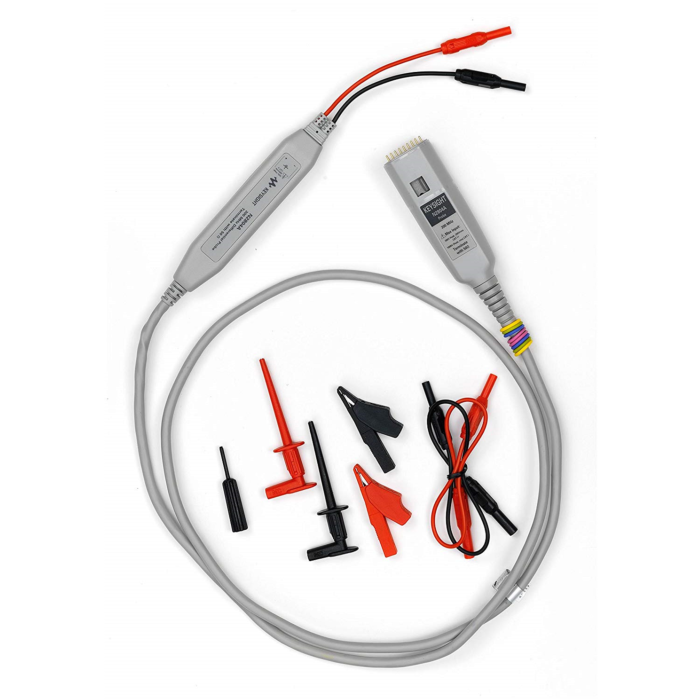

Rent Keysight Agilent N2804A Differential probe - 300 MHz 1000V
Order #: N2804A-RENT2
Mfg #: N2804A
Product Highlights
- 300-MHz bandwidth without extension leads
- Rated to measure differential voltage up to ±300 VDC + peak AC with high CMRR of >70 dB at 1 MHz
- Zero offset adjustable
- AutoProbe interface
The N2804A 300-MHz differential probe provides the superior differential signal measurements required for today's high-speed power measurements such as measuring characteristics of switching power devices, DC-DC converters, class D amplifiers or automotive buses. The probe offers 100:1 attenuation ratio, allowing it to be used adequate for up to +/-300V DC+peakAC of high voltage differential measurements with high CMRR. The differential probe has a differential input resistance of 4 MΩ and low input capacitance of 4 pF to minimize circuit loading. The probe comes with a pair of extension leads (30 cm long) with a damping resistor built in to damp out the in-band resonance and provide flat frequency response even with the extension leads and the probe tip accessories used. The probe is powered by Keysight's oscilloscope AutoProbe interface.
