Keysight N2795A Active Probe, 1GHz, Single ended
Active Probe,1GHz Single-ended

Order #: N2795A

Mfg #: N2795A

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,322.00

Keysight N2795A Active Probe, 1GHz, Single ended

Active Probe,1GHz Single-ended

Order #: N2795A

Mfg #: N2795A

$2,322.00
Availability: Ships in 4-6 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

  • 1 GHz bandwidth (-3dB)
  • High resistance (1Mohm) and low capacitance (1 pF) input for low loading
  • Wide input dynamic range (±8V) and offset range (±8V)

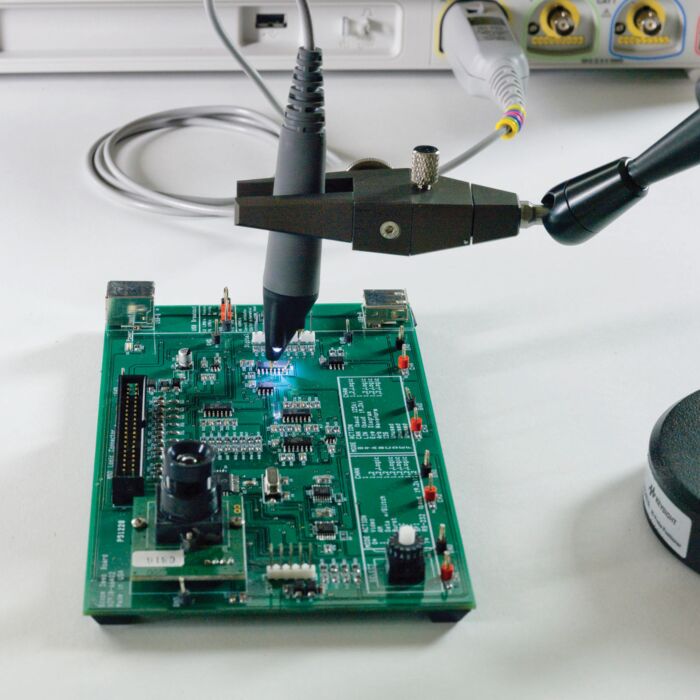

  • Built-in headlight for better visibility while probing
  • Includes various probe tip accessories
  • Direct connection to AutoProbe interface (no power supply required)
  • Provides full system bandwidth with InfiniiVision and Infiniium oscilloscopes with bandwidths up to 500 MHz
  • For use with Agilent InfiniiVision 3000 X, 5000, 6000, 7000 (except 6000 100MHz) and Infiniium 9000, 90000 Series
