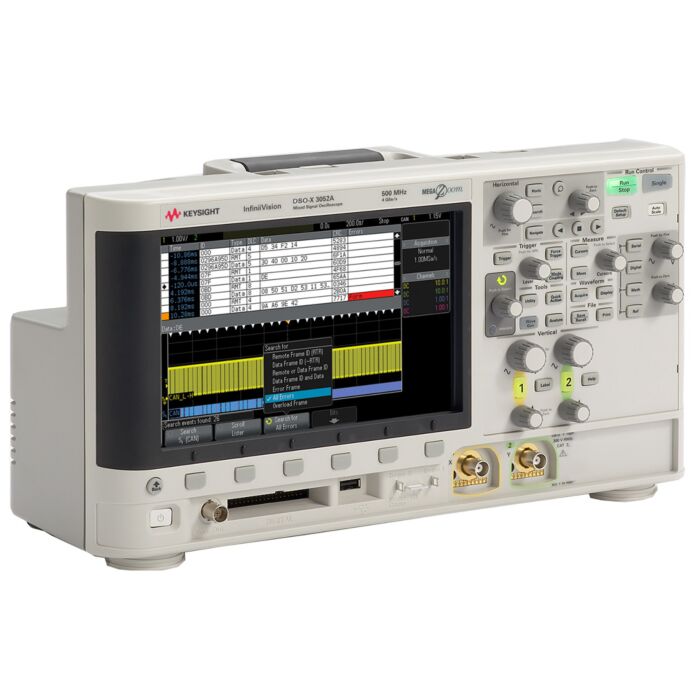

Keysight DSOX3052A Oscilloscope, 2-Channel, 500MHz
Oscilloscope,2-Channel,500MHz
Order #: DSOX3052A
Mfg #: DSOX3052A
$17,889.00
Keysight DSOX3052A Oscilloscope, 2-Channel, 500MHz
Oscilloscope,2-Channel,500MHz
Order #: DSOX3052A
Mfg #: DSOX3052A
$17,889.00
Availability: Ships in 4-6 weeks
Product Highlights
- High resolution 8.5-inch display
- Up to 1,000,000 wfms/s update rate
- Fast, responsive MegaZoom IV deep memory, up to 4 M
- Best-in-class oscilloscope
- Integrated 16 digital channel mixed signal oscilloscope (MSO)
- Serial protocol analyzer (optional)
- Industry-exclusive WaveGen built-in function generator (optional)
- Upgradable bandwidth
- Upgradable MSO
- Upgradable WaveGen built-in function generator
- Upgradable measurement applications
- Bandwidth 100 MHz, 200 MHz, 350 MHz, 500 MHz
- Channels 2 or 4 analog channels (DSO) +16 digital channels (MSO)
- Sample rate Up to 4 GSa/s
- Memory Up to 4 M
- Display 8.5-inch WVGA (800 x 480)
- Update rate 1,000,000 wfms/s
- Upgradable Bandwidth, MSO, measurement applications and WaveGen
- Warranty Standard 3-year
- Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
- Includes BV0004B Oscilloscope app
- Keysight N2871A Passive Probe, 200MHzPassive Probe,200MHz
Order #: N2871A
Mfg #: N2871A
Availability: Ships in 4-6 weeks$537.00 - Keysight N2750A Differential probe, 1.5 GHzDifferential probe 1.5 GHz
Order #: N2750A
Mfg #: N2750A
Availability: Ships in 4-6 weeks$6,633.00 - Keysight N2876A Passive Probe, 100:1, 1.5GHzPassive Probe,100:1,1.5GHz
Order #: N2876A
Mfg #: N2876A
Availability: Ships in 4-6 weeks$898.00 - Keysight N2874A Passive Probe, 10:1, 1.5GHzPassive Probe,10:1,1.5GHz
Order #: N2874A
Mfg #: N2874A
Availability: Ships in 4-6 weeks$898.00
