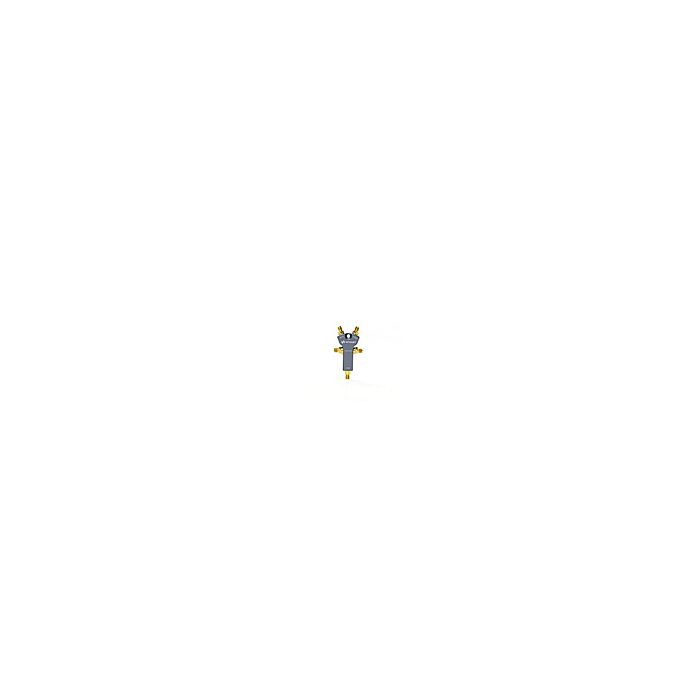

Keysight 85521A Calibration Kit,4-in-1, Open, Short,Load & Thru, DC-26.5GHz
Calibration Kit,4-in-1,Open, Short,Load & Thru.DC-26.5GHz

Order #: 85521A

Mfg #: 85521A

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,373.00

Keysight 85521A Calibration Kit,4-in-1, Open, Short,Load & Thru, DC-26.5GHz

Calibration Kit,4-in-1,Open, Short,Load & Thru.DC-26.5GHz

Order #: 85521A

Mfg #: 85521A

$5,373.00
The 85521A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with female-female connectors. During the "thru" part of the calibration, the 85521A through can be used.
Availability: Ships in 4-6 weeks

Product Highlights

  • Type-3.5 mm (f), 50 ohm, open, short, load, and through
  • DC to 26.5 GHz
  • Open phase error: 0 to 5 GHz ≤ 1.5°, 5 to 15 GHz ≤ 3.0°, 15 to 26.5 GHz ≤ 4.5°
  • Short phase error: 0 to 5 GHz ≤ 1.0°, 5 to 15 GHz ≤ 2.5°, 15 to 26.5 GHz ≤ 4.0°
  • Load return loss: 0 to 5 GHz ≥ 42 dB, 5 to 15 GHz, ≥ 36 dB, 15 to 26.5 GHz, ≥ 32 dB
  • H x W x D ~ 68 x 37 x 14 mm
