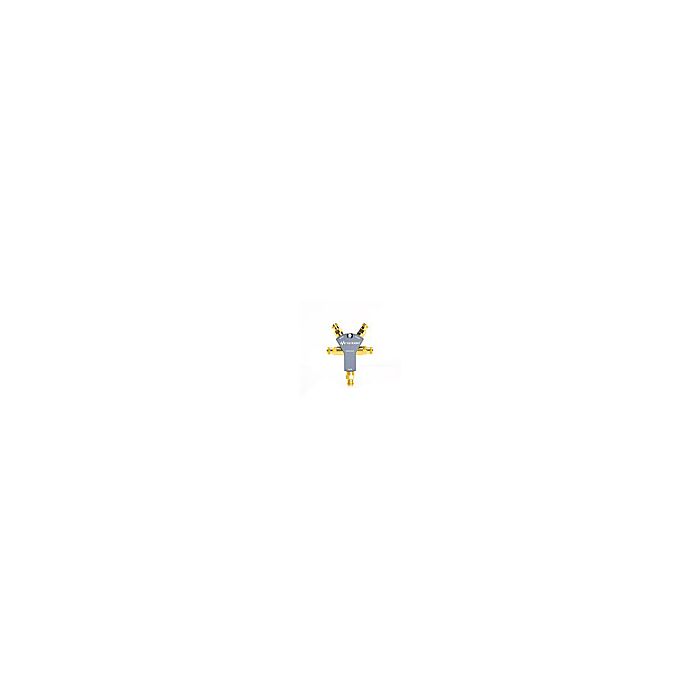

Keysight 85519A Calibraton Kit, 4-in-1, Open, Short Load & Thru, DC to 18GHz, Type N
Calibraton.Kit,4-in-1,Open,Shrt Load & Thru,DC to 18GHz,Type N
Order #: 85519A
Mfg #: 85519A
$4,836.00
Keysight 85519A Calibraton Kit, 4-in-1, Open, Short Load & Thru, DC to 18GHz, Type N
Calibraton.Kit,4-in-1,Open,Shrt Load & Thru,DC to 18GHz,Type N
Order #: 85519A
Mfg #: 85519A
$4,836.00
The 85519A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with female-female connectors. During the "thru" part of the calibration, the 85519A through can be used.
Availability: Ships in 4-6 weeks
Product Highlights
- Type-N (f), 50 ohm, open, short, load, and through
- DC to 18 GHz
- Open phase error: 0 to 6 GHz ≤ 2.0°, 6 to 9 GHz ≤ 3.0°, 9 to 18 GHz ≤ 4.0°
- Short phase error: 0 to 6 GHz ≤ 1.5°, 6 to 9 GHz ≤ 2.5°,9 to 18 GHz ≤ 3.0°
- Load return loss: 0 to 6 GHz ≥ 42 dB, 6 to 9 GHz, ≥ 35 dB, 9 to 18 GHz, ≥ 32 dB
- Dimensions: H x W x D ~ 121 x 89 x 22 mm
