Order #: 8495B-USED
Mfg #: 8495B

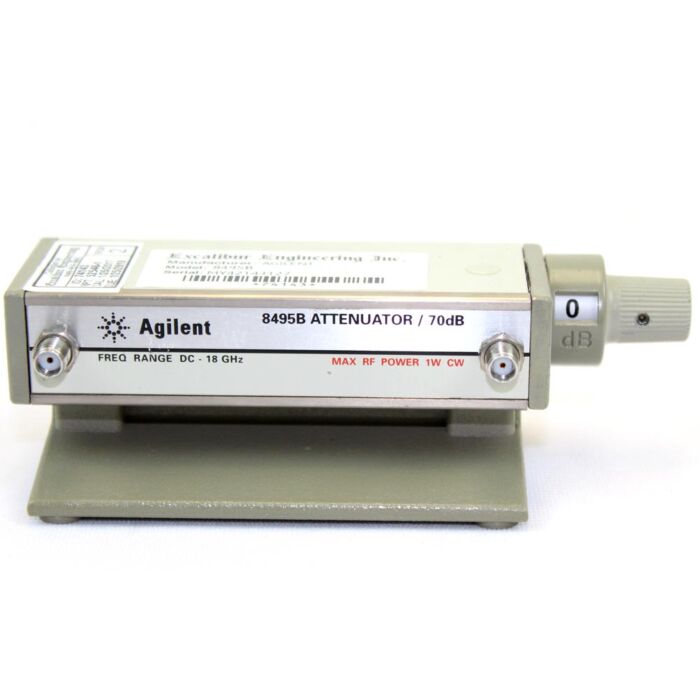

Used Keysight / Agilent 8495B Manual Step Attenuator, DC to 18GHz
Order #: 8495B-USED
Mfg #: 8495B
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
The Keysight 8495B dc to 18 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
- Frequency Range: dc to 18 GHz
- Insertion Loss at 0 dB: 0.4 dB + 0.07 dB/GHz
- Maximum SWR: 1.35 to 8 GHz, 1.5 to 12.4 GHz, 1.7 to 18 GHz
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
- Power handling
- Maximum RF Input Power: 1 W (average), 100 W (peak)
- Connector Type: choice of Type-N female, SMA female, APC-7
- Connect in series with 11716A Attenuator Interconnect Kit, Type-N
- Connect in series with 11716C Attenuator Interconnect Kit, SMA
-
