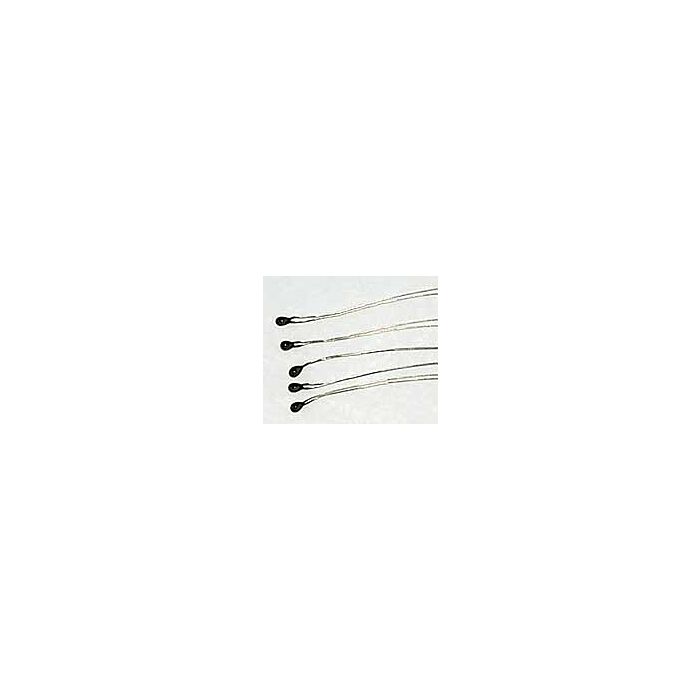

Keysight 34308A Thermistor Kit, 5 10Kohm, 0 to 75C

Product Highlights

• The Agilent 34308A thermistor kit contains five 10k Ohm at 25 degrees C thermistors, epoxy encapsulated with bead construction
• The operating temperature range is 0 to 75 degrees C, with 0.1 degreec C interchangeability
• The 34308A is recommended for high accuracy, high sensitivity temperature measurements and for calibration of the Agilent 34970A multiplexer modules
• The Agilent 34308A is compatible with the Agilent 3458A, 34410A and 34411A multimeters
• The 34308A can also be used with the 34401A, however, BenchLink Meter or another external program is required to convert the reistance measurements to temperature in addition to rewiring the bare wire termination
• Temperature range: 0 to 75 degrees C
• Interchangability: 0.1 degrees C
• Termination: bare wire
• Thermistor: 0.095" Diameter Max. (2.4 mm)
• 32 AWG Tinned Solid Copper Wire: 3.0" Min. (76 mm)
