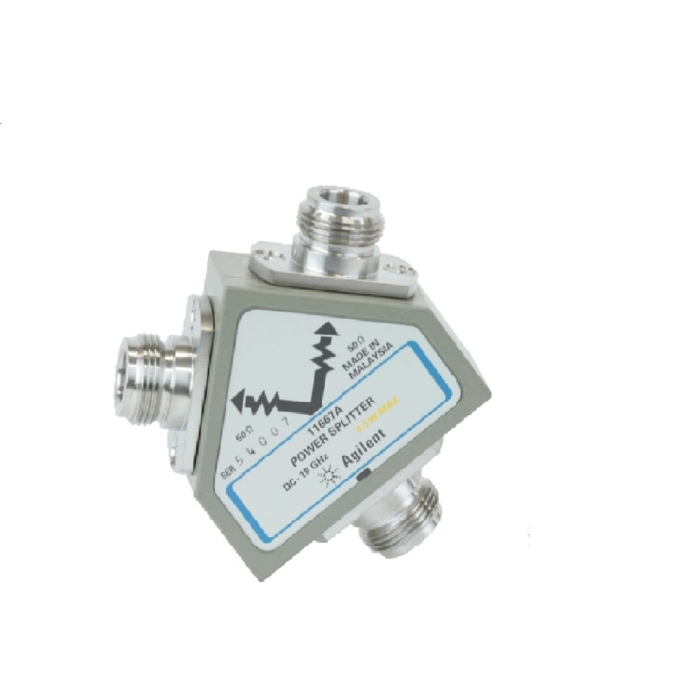

Used Keysight / Agilent 11667A Power Splitter, DC to 18GHz, 1.33 Equivalent output SWR
Power Splitter, DC to 18GHz 1.33 Equivalent output SWR
Order #: 11667A-USED
Mfg #: 11667A
Call for price
Call for price
Used Keysight / Agilent 11667A Power Splitter, DC to 18GHz, 1.33 Equivalent output SWR
Power Splitter, DC to 18GHz 1.33 Equivalent output SWR
Order #: 11667A-USED
Mfg #: 11667A
Call for price
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Call for price
Availability: Ships in 1-2 weeks
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
The Keysight 11667A power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 18 GHz allows wideband measurements to be made with a minimum of uncertainty.
- Equivalent output SWR: 1.33
- Maximum input power: 0.5 W
- Insertion loss: 7 dB
- Tracking between any two ports: 0.20 dB to 8 GHz
