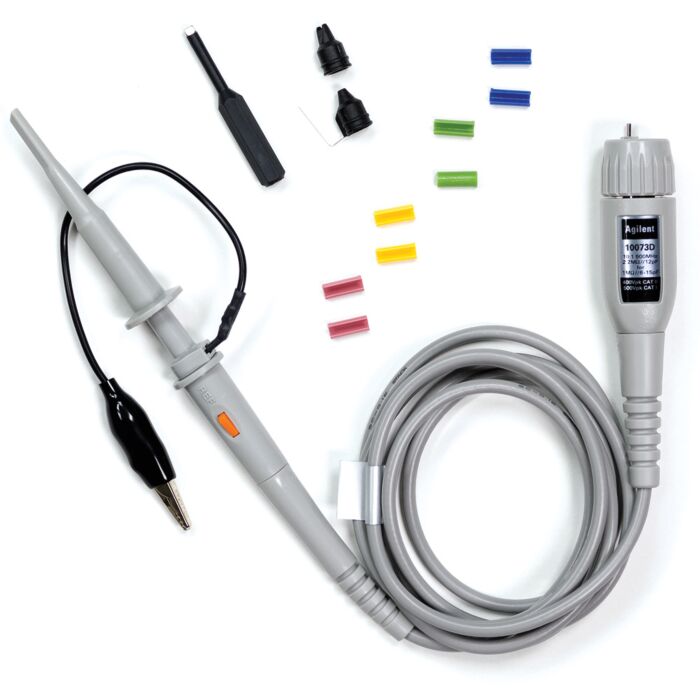

Keysight 10073D Passive Probe, 10:1,500MHz, 1.5m
Passive Probe,10:1,500MHz,1.5m
Order #: 10073D
Mfg #: 10073D
$814.00
Keysight 10073D Passive Probe, 10:1,500MHz, 1.5m
Passive Probe,10:1,500MHz,1.5m
Order #: 10073D
Mfg #: 10073D
$814.00
Availability: Ships in 4-6 weeks
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
- Bandwidth: 500 MHz
- System risetime (calculated): <700 ps
- Attenuation Ratio: 10:1
- Input resistance: 2.2 MOhm (when terminated into 1 MOhm)
- Input capacitance: ~12 pF
- Maximum input (dc + peak ac): 500 V CAT I (mains isolated) 300 V CAT II (post receptacle mains)
- Compensation range: 6 - 15 pF
Each Unit Includes
- Retractable hook tip
- Orange, white, blue and green identification tags
- Ground bayonet
- IC probing tip
- Adjustment tool
- Alligator clip ground lead
