Keysight N9917A-210 Vector Network Analyzer, Transmission/Refelection

Vector Network Analyzer Transmission/Refelection

Order #: N9917A-210

Mfg #: N9917A-210

$10,678.00

Availability: Ships in 4-6 weeks

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Vector network analyzer

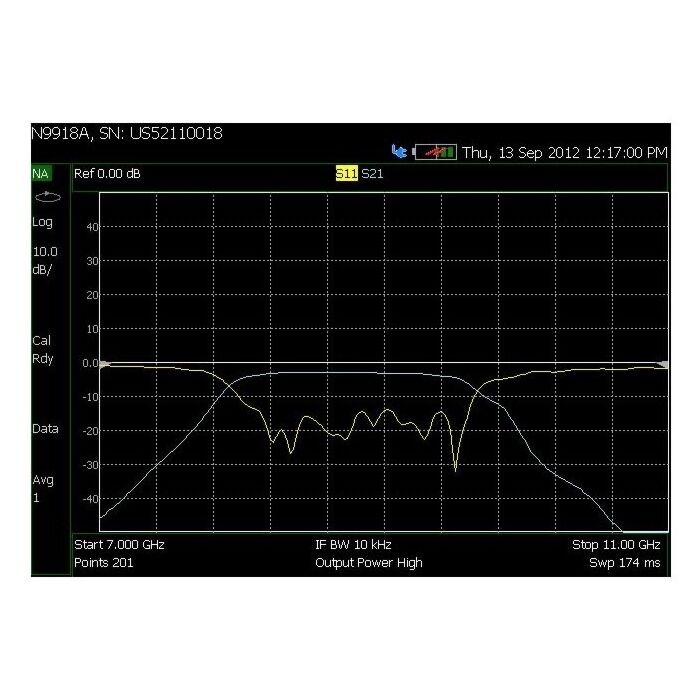

Transmission/reflection (S21, S11), magnitude and phase
30 kHz to 18 GHz
Directivity > 42 dB, dynamic range 100 dB to 9 GHz, 90 dB to 18 GHz
Flat output power (± 1 dB) across whole frequency range, adjustable in 1 dB steps

A base N9917A combination analyzer includes a cable and antenna analyzer. Option 210 adds:

A vector network analyzer mode with transmission/reflection or S21 and S11 measurements, both magnitude and phase. Available calibrations are CalReady, one-port OSL, response and enhanced response.
Insertion loss measurement to the base cable and antenna analyzer or CAT mode.
2-port transmission measurement to the vector voltmeter mode, available as Option 308.
Tracking capability to the spectrum analyzer independent source, available as Option 233 (source and spectrum analyzer set to sweep a frequency range, in sync)
