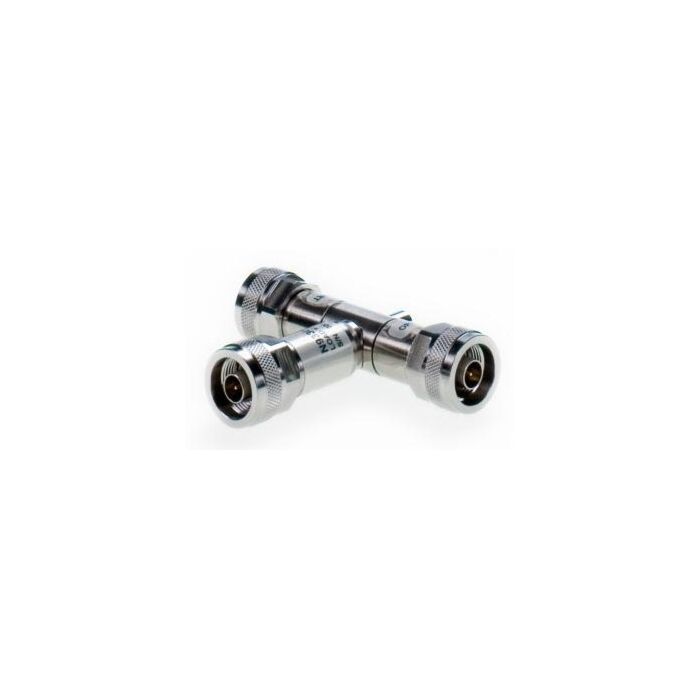

Keysight N9910X-800 T-Cal kit, 3-in-1, open, short, load, DC-6GHz, Type-N(m), 50 ohm
T-Cal kit, 3-in-1, open, short, load, DC-6GHz, Type-N(m), 50 o

Order #: N9910X-800

Mfg #: N9910X-800

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,522.00

Keysight N9910X-800 T-Cal kit, 3-in-1, open, short, load, DC-6GHz, Type-N(m), 50 ohm

T-Cal kit, 3-in-1, open, short, load, DC-6GHz, Type-N(m), 50 o

Order #: N9910X-800

Mfg #: N9910X-800

$1,522.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Frequency range: DC to 6 GHz
  • Input power: +25 dBm max.
  • Source match: ≥ 35 dB
  • Directivity: ≥ 42 dB
  • Impendence: 50 Ω

Open specifications

  • Male offset length: 21.287 mm
  • Phase tolerance: 1.25 degrees
  • RL: ≤ 0.10 dB

Load specifications

  • DC resistance: 50 Ω ± 0.5 Ω
  • RL: ≥ 42 dB

Short specifications

  • Male offset length: 21.287 mm
  • Phase tolerance: 0.85 degrees
  • RL: ≤ 0.10 dB
