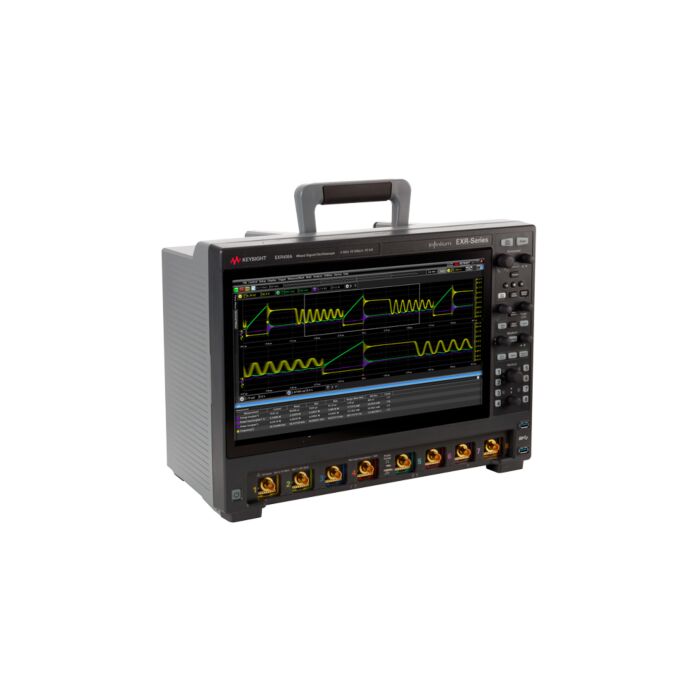

Keysight EXR408A Infiniium EXR Series Real-Time Oscilloscope, 4 GHz, 8 Channel
Infiniium EXR Series Real-Time Oscilloscope, 4 GHz, 8 Ch

Order #: EXR408A

Mfg #: EXR408A

Questions about availability or need help? Contact Us:

(800) 633-0561
$117,655.00

Keysight EXR408A Infiniium EXR Series Real-Time Oscilloscope, 4 GHz, 8 Channel

Infiniium EXR Series Real-Time Oscilloscope, 4 GHz, 8 Ch

Order #: EXR408A

Mfg #: EXR408A

$117,655.00
Availability: Ships in 4-6 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

The Infiniium EXR-Series offers up to 6 GHz of bandwidth and 16 GSa/s sample rate on every single one of its four or eight channels. Combined with 100 Mpts of standard memory per channel, flexible three-stage triggering, over 50 standard measurements, a massive library of application-specific packages, and ASIC-accelerated testing, the Infiniium EXR-Series lets you see more of your signal than ever before.

Each model incorporates a 10-bit ADC with a sample rate of 16 GSa/s available on all channels simultaneously. A high-resolution ADC's usefulness is dependent on the low-noise front end that supports the additional quantization levels. Our low noise front end includes custom ICs, like the 130 nm BiCMOS IC that incorporates user-selectable analog filters and bandwidth upgrades via a software license. This gives you:

  • Four times more vertical resolution than 8-bit oscilloscopes
  • Up to 16 bits with high-res mode
  • As low as 43 µV of noise, 9.0 bits system ENOB with hardware filtering

The Infiniium EXR-Series comes standard with two useful tools that allow you to look forward and backward in time. With history mode, simply stop the oscilloscope at any time to review up to 1,024 previous trigger events. With segmented memory, you can capture > 100,000 events post-trigger for analysis, with no limit between events. If your design has an elusive event that only seems to happen when you're not around, these tools arm the oscilloscope to look for it, then let you review what gets captured at your leisure. And with a full HD screen of 1920x1080 pixels, and support for a second, independent external monitor, that data can be organized and displayed however is best for you.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Keysight EXR2BW-022 8 Channel Bandwidth Upgrade from 500 MHz to 4 GHz
    Keysight EXR2BW-022 8 Channel Bandwidth Upgrade from 500 MHz to 4 GHz
    8 Channel Bandwidth Upgrade from 500 MHz to 4 GHz

    Order #: EXR2BW-022

    Mfg #: EXR2BW-022

    Availability: Ships in 4-6 weeks
    $62,159.00
  2. Keysight EXR2BW-023 8 Channel Bandwidth Upgrade from 500 MHz to 6 GHz
    Keysight EXR2BW-023 8 Channel Bandwidth Upgrade from 500 MHz to 6 GHz
    8 Channel Bandwidth Upgrade from 500 MHz to 6 GHz

    Order #: EXR2BW-023

    Mfg #: EXR2BW-023

    Availability: Ships in 4-6 weeks
    $101,827.00
  3. Keysight EXR2BW-024 8 Channel Bandwidth Upgrade from 1 GHz to 4 GHz
    Keysight EXR2BW-024 8 Channel Bandwidth Upgrade from 1 GHz to 4 GHz
    8 Channel Bandwidth Upgrade from 1 GHz to 4 GHz

    Order #: EXR2BW-024

    Mfg #: EXR2BW-024

    Availability: Ships in 4-6 weeks
    $47,516.00
  4. Keysight EXR2BW-025 8 Channel Bandwidth Upgrade from 1 GHz to 6 GHz
    Keysight EXR2BW-025 8 Channel Bandwidth Upgrade from 1 GHz to 6 GHz
    8 Channel Bandwidth Upgrade from 1 GHz to 6 GHz

    Order #: EXR2BW-025

    Mfg #: EXR2BW-025

    Availability: Ships in 4-6 weeks
    $87,402.00
  5. Keysight EXR2BW-026 8 Channel Bandwidth Upgrade from 2 GHz to 4 GHz
    Keysight EXR2BW-026 8 Channel Bandwidth Upgrade from 2 GHz to 4 GHz
    8 Channel Bandwidth Upgrade from 2 GHz to 4 GHz

    Order #: EXR2BW-026

    Mfg #: EXR2BW-026

    Availability: Ships in 4-6 weeks
    $32,131.00
  6. Keysight EXR2BW-027 8 Channel Bandwidth Upgrade from 2 GHz to 6 GHz
    Keysight EXR2BW-027 8 Channel Bandwidth Upgrade from 2 GHz to 6 GHz
    8 Channel Bandwidth Upgrade from 2 GHz to 6 GHz

    Order #: EXR2BW-027

    Mfg #: EXR2BW-027

    Availability: Ships in 4-6 weeks
    $72,017.00
  7. Keysight EXR2BW-028 8 Channel Bandwidth Upgrade from 2.5 GHz to 4 GHz
    Keysight EXR2BW-028 8 Channel Bandwidth Upgrade from 2.5 GHz to 4 GHz
    8 Channel Bandwidth Upgrade from 2.5 GHz to 4 GHz

    Order #: EXR2BW-028

    Mfg #: EXR2BW-028

    Availability: Ships in 4-6 weeks
    $19,527.00
  8. Keysight EXR2BW-029 8 Channel Bandwidth Upgrade from 2.5 GHz to 6 GHz
    Keysight EXR2BW-029 8 Channel Bandwidth Upgrade from 2.5 GHz to 6 GHz
    8 Channel Bandwidth Upgrade from 2.5 GHz to 6 GHz

    Order #: EXR2BW-029

    Mfg #: EXR2BW-029

    Availability: Ships in 4-6 weeks
    $59,413.00
  9. Keysight EXR2BW-030 8 Channel Bandwidth Upgrade from 4 GHz to 6 GHz
    Keysight EXR2BW-030 8 Channel Bandwidth Upgrade from 4 GHz to 6 GHz
    8 Channel Bandwidth Upgrade from 4 GHz to 6 GHz

    Order #: EXR2BW-030

    Mfg #: EXR2BW-030

    Availability: Ships in 4-6 weeks
    $39,885.00
Analog channels 4 or 8, upgradeable
Bandwidth 500 MHz to 6 GHz, upgradeable
Sample rate 16 GSa/s
Memory 100 Mpts, upgradeable to 400 Mpts or 1.6 Gpts flexible memory
Resolution 10 bits, up to 16 with high resolution
ENOB As high as 9.0
Digital logic channels 16, dedicated input, upgradeable
Update rate > 200,000 wfm/s
Eye diagram speed > 750,000 UI/s
Screen display 15.6" touch, full HD, dual screen support
