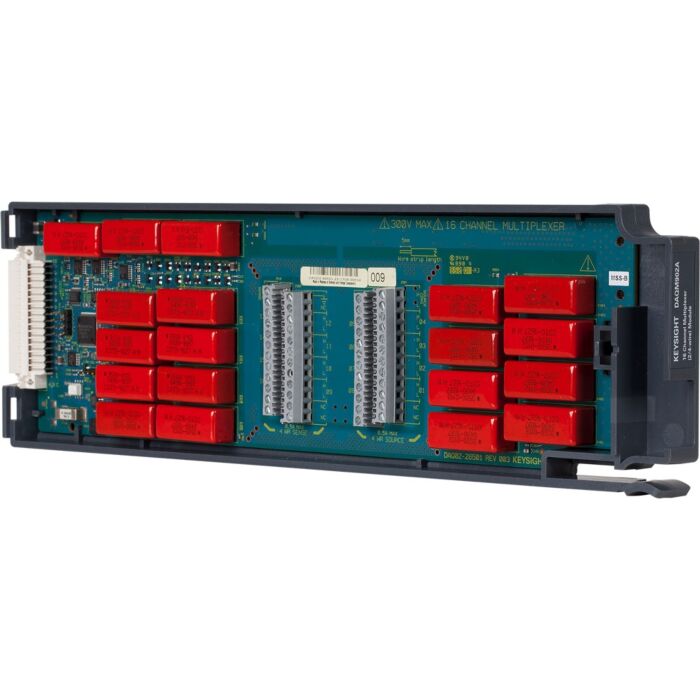

Keysight DAQM902A 16 Channel Multiplexer (2/4-wire) Module for DAQ970A

Product Highlights

The Keysight DAQM902A module for the DAQ970A Data Acquisition System employs reed relays to achieve scan rates up to 250 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks.

Sixteen two-wire inputs switch up to 300 V. Two-and four-wire channels may be mixed on the same module. User provided shunt resistors are required for current measurements.

• 20 channel multiplexer + 2 Channels for dedicated current measurement
• Two- and four-wire scanning
• 300 V switching
• 80 channels/s scanning
• Built-in thermocouple reference junction

Each Unit Includes

• 1 DAQM902A, 16 Channel Multiplexer Module
• 1 Certificate of Calibration
