Order #: N6752A-USED
Mfg #: N6752A

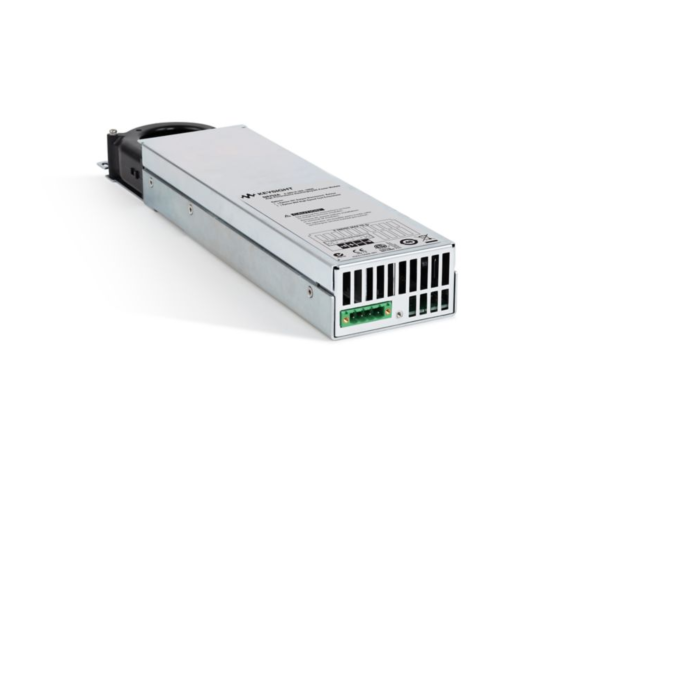

Used Keysight / Agilent N6752A N6700 Series High-Performance Autoranging DC Power Module, 50V, 10A, 100W
Order #: N6752A-USED
Mfg #: N6752A
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Key Features & Specifications
Output ratings
- Voltage: 50 V
- Current: 10 A
- Power: 100 W
Programming accuracy (at 23°C ±5°C)
- Voltage: 0.06% + 19 mV
- Current: 0.1% + 20 mA
Ripple & noise (20 Hz to 20 MHz)
- Voltage peak-to-peak: 4.5 mV
- Voltage rms: 350 µV
- Current rms: 2 mA
Description
The Keysight N6752A is a 100 W high-performance, autoranging DC power module that provides low noise, high accuracy and programming speeds that are up to 10 to 50 times faster than other programmable power supplies. Optional high-speed test extension offers an oscilloscope-like digitizer that increases measurement accuracy when viewing high-speed transient or pulse events within the device-under-test (DUT).
This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.
-
