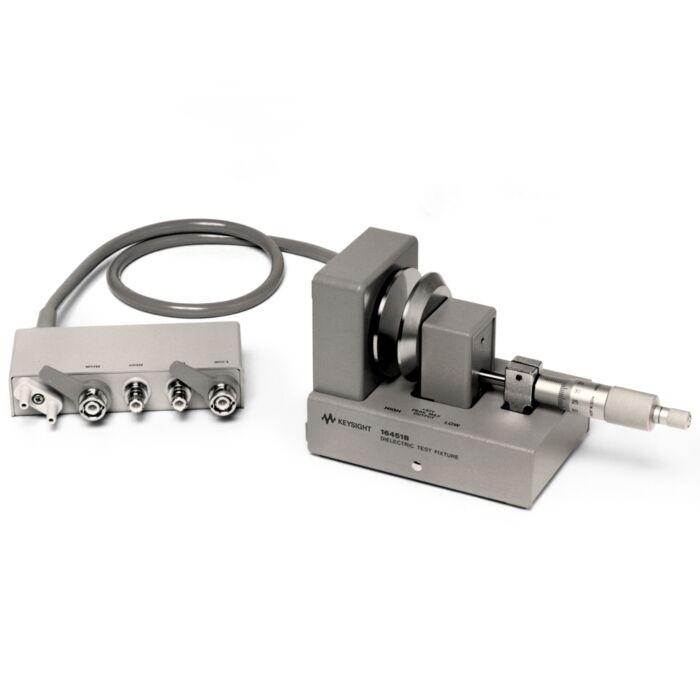

Keysight 16451B Dielectric Material Test Fixture

Product Highlights

• Frequency: ² 30 MHz
• Measurement parameters: capacitance (C), dissipation factor (D), and dielectric constant
• Material-under-test size: thickness = ² 10 mm and diameter = 10 to 56 mm

The 16451B is used to evaluate the dielectric constant of solid dielectric materials accurately, and complies with ASTM D150. The 16451B employs the parallel plate method, which sandwiches the material between two electrodes to form a capacitor. An LCR meter or an impedance analyzer is then used to measure the capacitance created from the fixture.
