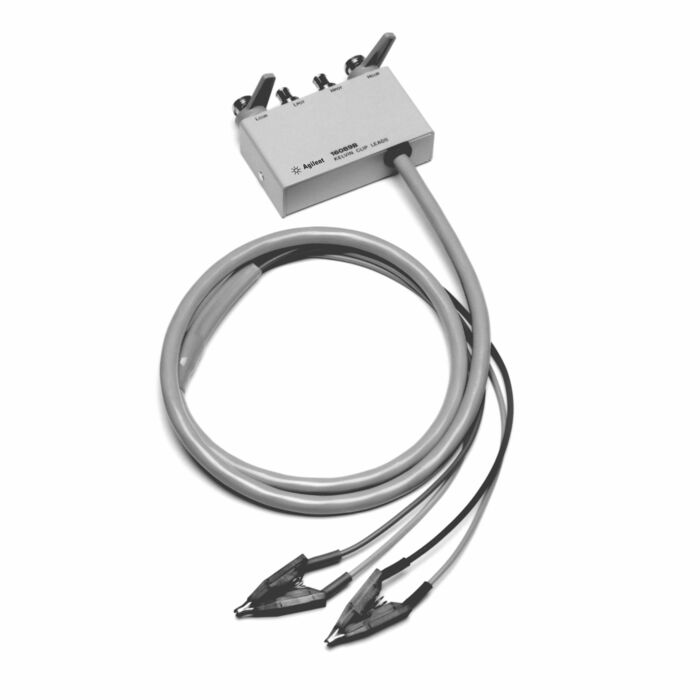

Keysight 16089B Medium Kelvin Clip Leads
Medium Kelvin Clip Leads
Order #: 16089B
Mfg #: 16089B
$1,916.00
Keysight 16089B Medium Kelvin Clip Leads
Medium Kelvin Clip Leads
Order #: 16089B
Mfg #: 16089B
$1,916.00
Availability: Ships in 4-6 weeks
Product Highlights
- Measurement Instrument: 4192A, 4194A (Impedance Mode), 4263B, 4278A, 4284A, 4285A, and E4980A
- Frequency: 5Hz to 100kHz
- DC Bias: -42V to +42V
- Operating Temperature: 0 to 55°C
- Terminal Diameter: 7.9mm or less
- Cable Length: Approx.0.94m (from connector to clip tip)
- Terminal Connection: BNC, 4 terminal-pair
The 16089B makes it possible to measure odd-shaped components that cannot be measured with conventional fixtures. It is equipped with two insulated Kelvin clips.
