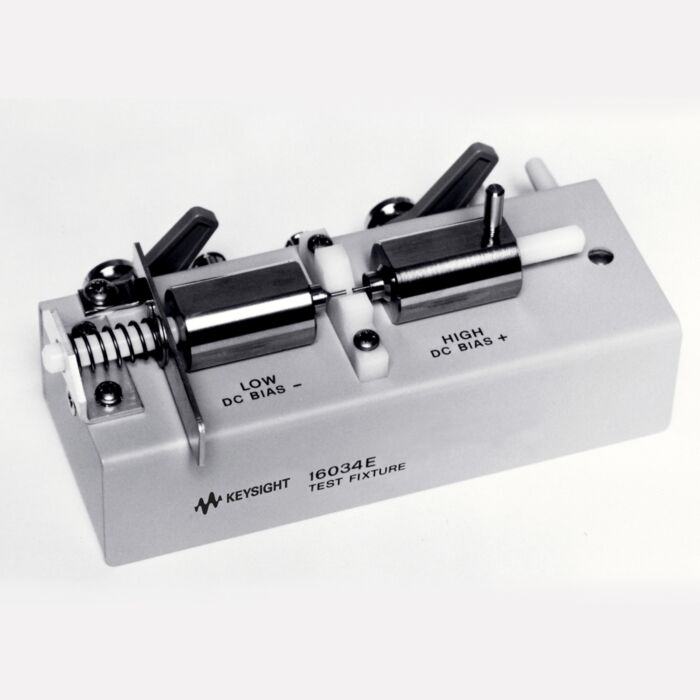

Keysight 16034E SMD Test Fixture

SMD Test Fixture

Order #: 16034E

Mfg #: 16034E

$3,457.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • Measurement Instruments: 4192A, 4194A(Impedance Mode), 4263B, 4278A, 4279A, 4284A, 4285A, 4294A, and E4980A
  • Frequency: DC to 40MHz
  • DC Bias: +/- 40V peak max (AC+DC)
  • Operating Temperature: 0 to 55 degrees C
  • Terminal Connection: BNC, 4 terminal-pair
  • Dimensions (approx.): 128(W) x 60(H) x 71(D)mm
  • SMD Test Fixture Selection Table

The 16034E test fixture is designed for impedance evaluations of SMD components. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L)mm x 0.8(W)mm.
