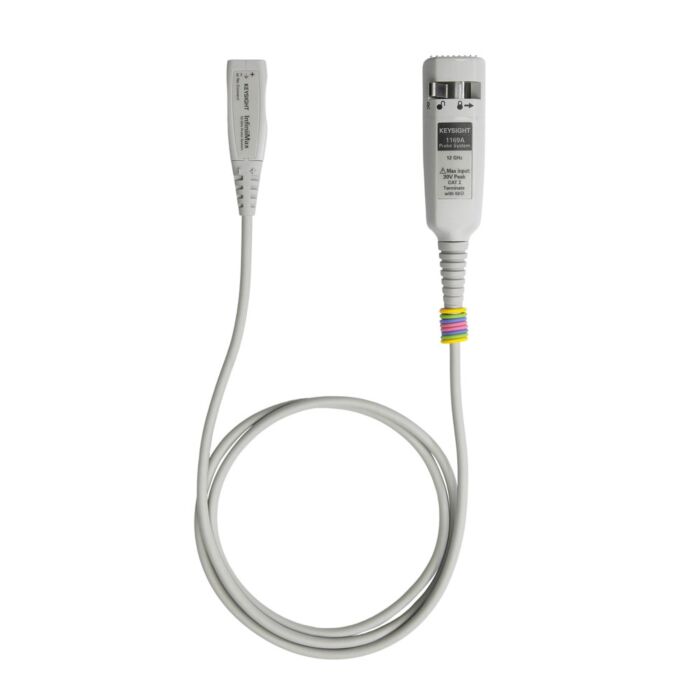

Used Keysight / Agilent 1168A InfiniiMax II Probe Amplifier, 10GHz
InfiniiMax II Probe Amplifier 10GHz
Order #: 1168A-USED
Mfg #: 1168A-USED
$4,648.35
Used Keysight / Agilent 1168A InfiniiMax II Probe Amplifier, 10GHz
InfiniiMax II Probe Amplifier 10GHz
Order #: 1168A-USED
Mfg #: 1168A-USED
$4,648.35
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
Product Highlights
Bandwidth
- 10 GHz
Range
- dynamic range at 3.3 V peak-to-peak
- DC offset range at +/- 16 V
- maximum voltage at +/- 30 V
Input impedance
- differential input R: 50 Kohm
- differential input C: 0.21 pF
- single-ended input R: 25 Kohm
- single-ended input C: 0.35 pF
Connectivity
- N2839A differential browser
- N5380B differential SMA head
- N5381B differential solder-in head
- N5425B differential ZIF head (requires Keysight N5426A ZIF tip or N5451A long-wire ZIF tip)
Use the Keysight InfiniiMax II Series 1168A probe amplifier with Infiniium Series oscilloscopes to get real-time bandwidth up to 10 GHz. The award winning InfiniiMax Series probing system supports even the most demanding mechanical access requirements without sacrificing performance.
