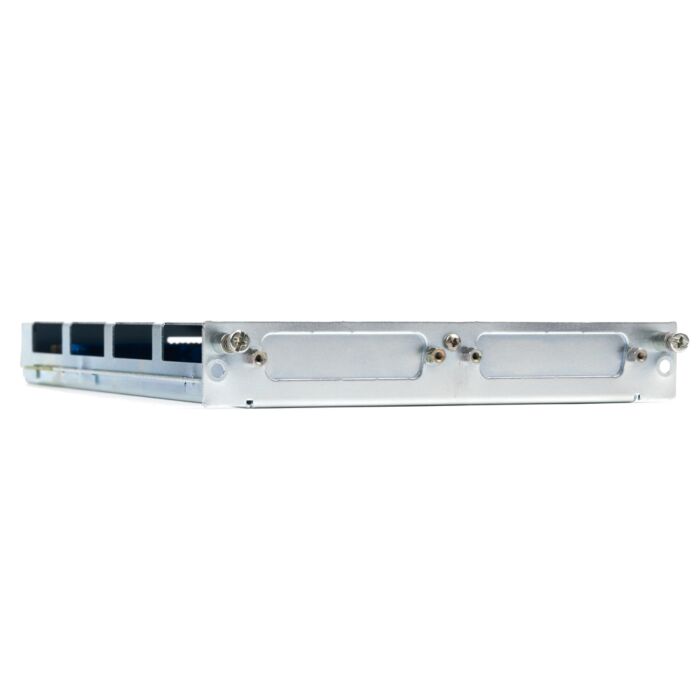

Keysight 34959A Breadboard Module, for 34980A

Product Highlights

• +12V and +5V power supplies
• 32 drive lines
• 16 GPIO ports
• 5.4" x 7.5" x .9" space for custom circuitry
• Programmable with SCPI commands

The Keysight 34959A module for the 34980A Multifunction Switch/Measure Unit can be used to create custom designs inside the Mainframe. You can control your circuits with access to both the +12V and +5V supplies, 16 GPIO ports, and 32 relay drive lines. The faceplate has cutouts for the most common connectors. The breadboard module can be programmed using standard read and write commands in SCPI.
