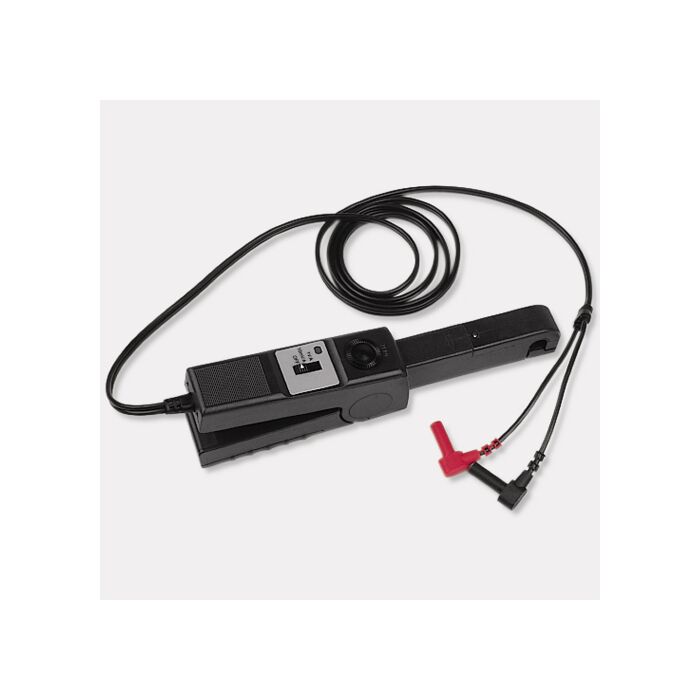

Keysight 34134A DMM DC/AC Current Probe, 8kHz, bw, 10mA to 50A DC, 40A AC
DMM DC/AC Current Probe,8kHz bw 10mA to 50A DC,40A AC
Order #: 34134A
Mfg #: 34134A
$1,133.00
Keysight 34134A DMM DC/AC Current Probe, 8kHz, bw, 10mA to 50A DC, 40A AC
DMM DC/AC Current Probe,8kHz bw 10mA to 50A DC,40A AC
Order #: 34134A
Mfg #: 34134A
$1,133.00
Availability: Ships in 4-6 weeks
Product Highlights
- Termination: right angle shrouded banana plugs
- Frequency range: DC to 8 kHz
- Current range, 10 mA to 80 A DC, 10 mA to 60 A AC
- Accuracy: 2% reading +5 mA (1 V/A range)
- Output signals: 1 V/A and 10 mA
- Length: 1.5 meters
- Minimum input resistance of DMM: 100 kOhm
- Rating: 600 V CAT III
The Keysight 34134A is a clamp-on probe for a wide range of applications such as measuring ground currents, powers ripple, or current distribution in systems. The 34134A is compatible with the 34460A, 34461A, 34401A, 34410A, 34411A, and L4411A DMM models.
