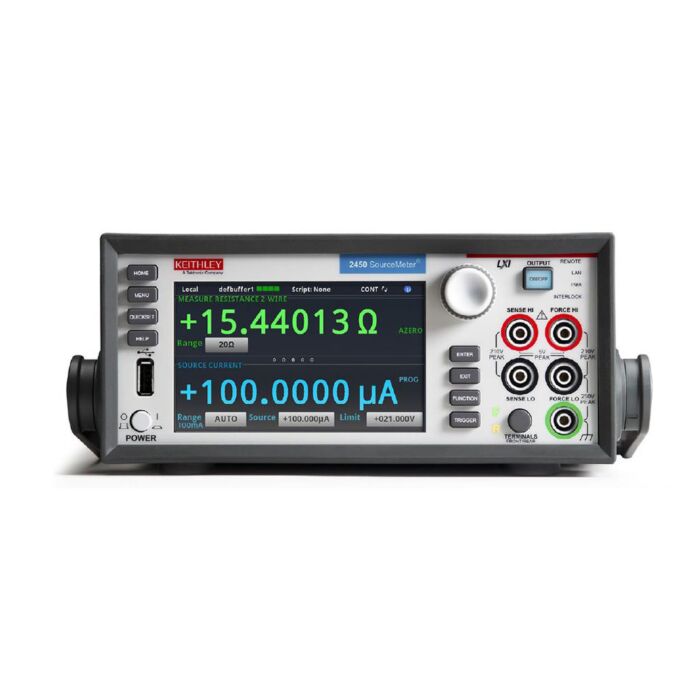

Keithley 2450 Interactive Digital SourceMeter
Interactive Digital SourceMeter

Order #: 2450

Mfg #: 2450

Questions about availability or need help? Contact Us:

(800) 633-0561
$10,192.00

Keithley 2450 Interactive Digital SourceMeter

Interactive Digital SourceMeter

Order #: 2450

Mfg #: 2450

$10,192.00
Availability:
In stock
This item is available USED at
$7,693.00
Shop now

Product Highlights

  • 200 V, 1 A, or 20 W max.
  • Capabilities of analyzers, curve tracers, and I-V systems
  • Five-inch, high resolution capacitive touchscreen GUI
  • 0.012% basic measure accuracy with 6-1/2 digit resolution
  • Enhanced sensitivity with new 20mV and 10nA source/measure ranges
  • Source and sink (4-quadrant) operation
  • Four "Quickset" modes for fast setup and measurements
  • Built-in, context-sensitive front panel help
  • Front panel input banana jacks; rear panel input triaxial connections
  • GPIB, USB, Ethernet (LXI)
  • 2450 enhanced SCPI and TSP scripting programming modes
  • Model 2400 SCPI-compatible programming mode
  • Front panel USB memory port for data/programming/configuration I/O
  • Each Unit Includes

    • 8608 High Performance Test Leads
    • USB-B-1 USB Cable, Type A to Type B, 1 m (3.3 ft)
    • CS-1616-3 Safety Interlock Mating Connector
    • CA-180-3A TSP-Link/Ethernet Cable
    • Documentation CD
    • 2450 QuickStart Guide
    • Test Script Builder Software (supplied on CD)
    • KickStart Startup Software (supplied on CD)
    • LabVIEW and IVI Drivers available at www.keithley.com
