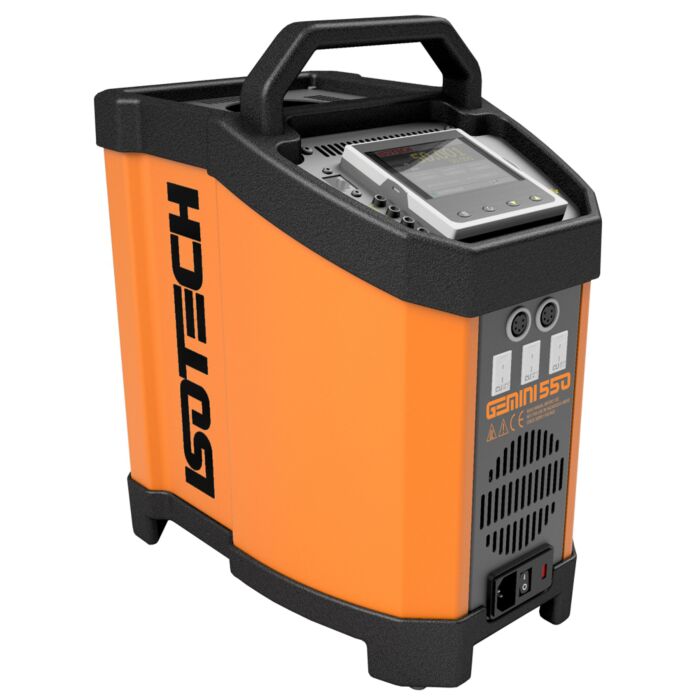

Isotech GEMINI R 550
Black Body Calibrator, 50C-550C
Order #: GEMINI R 550
Mfg #: GEMINI R-976
$14,023.80
Isotech GEMINI R 550
Black Body Calibrator, 50C-550C
Order #: GEMINI R 550
Mfg #: GEMINI R-976
Product Highlights
- 30°C to 550°C (1022°F)
- 0.995 Emissivity
- Ideal for Raytek ST, MX & CI Series thermometers
- Includes External Reference Probe
- Accepts Fixed Point Cells
- NIST Certificate: For the built-in Indicator and supplied probe
- Temperature Range 30°C to 550°C (1022°F)
- Emissivity 0.995
- Accuracy ±0.5°C at 550°C
- Stability ±0.1°C
- Computer Interface Included with Windows Software
- Cavity Size 65mm (2.6") X 160mm (6.3") deep
- Heating Time 45 Minutes to 550°C
- Power Supply 120 VAC ±10% or 240 VAC, 1000W
- Dimensions (HxWxD) 310mm (~12") x 265mm (~10.5") x 200mm (~8")
- Weight 10 kg (22 lbs.)
Each Unit Includes
- 935-14-72/DB, Serial Communications and Cal Notepad Software
