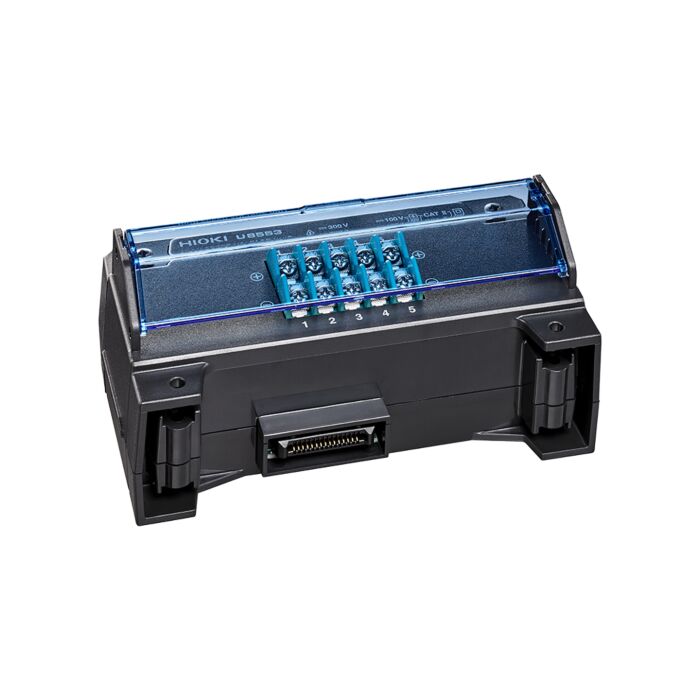

Hioki U8553
High Speed Voltage Unit (5-Channels)
Order #: U8553
Mfg #: U8553
$1,739.29
Hioki U8553
High Speed Voltage Unit (5-Channels)
Order #: U8553
Mfg #: U8553
Product Highlights
HIGH SPEED VOLTAGE UNIT U8553
Voltage measurement with 1 ms sampling
- 5 channels, voltage measurement
- Sampling rate of up to 1 ms with 5 channels
- For measuring various sensor outputs at several tens of Hz, such as pressure and vibration.
-
$3,234.00

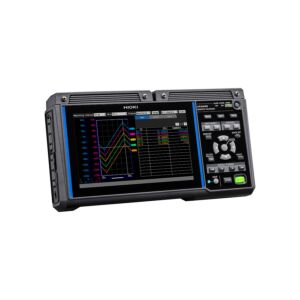

| Connectable instruments | Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model) |
|---|---|
| Operating temperature and humidity | -10°C to 50°C, 80% RH or less (no condensation) |
| Storage temperature and humidity | -20°C to 60°C, 80% RH or less (no condensation) |
| Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
| Included accessories | Instruction manual x 1, mounting screw x 2 |
| Number of input channels | 5 ch (for voltage only) |
| Input terminals | M3 screw-type terminal block (2 terminals per channel), outfitted with terminal block cover |
| Measurement target | Voltage |
| Input type | Scanning by semiconductor relays All channels isolated |
