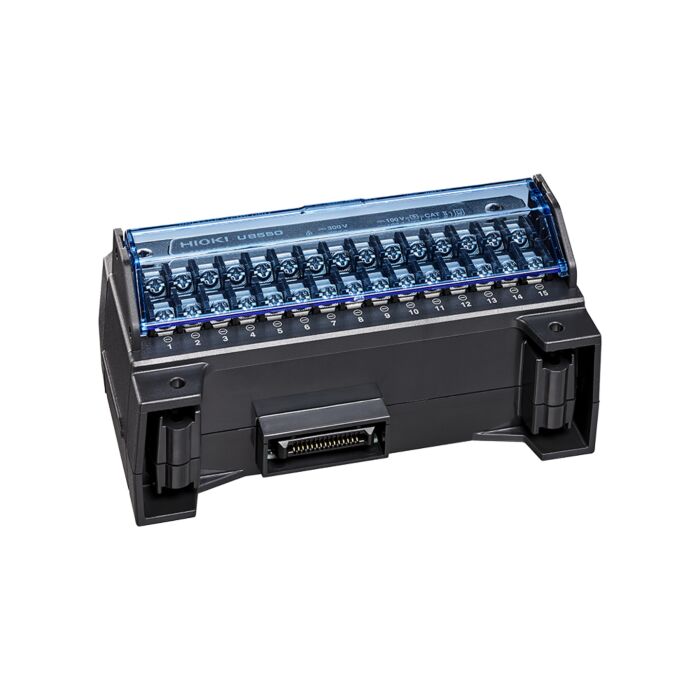

Hioki U8550 Voltage/Temperature Unit, 15-Channel
Hioki U8550 Voltage/Temperature Unit, 15-Channel
Voltage/Temp.Unit,15-Channel
Order #: U8550
Mfg #: U8550
Availability: Ships in 3-4 weeks
Product Highlights
VOLTAGE/TEMP UNIT U8550
Voltage, Temperature, and Humidity Measurement with 10 ms Sampling
- 15 ch, voltage/temperature (thermocouples)/humidity measurement
- Sampling rate of up to 10 ms with 15 channels
- For DC voltage measurement and temperature measurement using thermocouples
-
$3,465.00
| Connectable instruments |
Memory HiLogger LR8450 (Designed for use with plug-in units only)
Memory HiLogger LR8450-01 (Wireless LAN model) |
| Operating temperature and humidity |
-10°C to 50°C, 80% RH or less (no condensation) |
| Storage temperature and humidity |
-20°C to 60°C, 80% RH or less (no condensation) |
| Vibration resistance |
JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
| Included accessories |
Instruction manual x 1, mounting screw x 2 |
| Number of input channels |
15 ch (Able to set voltage, temperature using the thermocouple, and humidity for each channel) |
| Input terminals |
M3 screw-type terminal block (2 terminals per channel) |
| Measurement target |
Voltage, temperature using the thermocouple, and humidity |
| Input type |
Scanning by semiconductor relays
All channels isolated (Not isolated when measuring humidity) |
