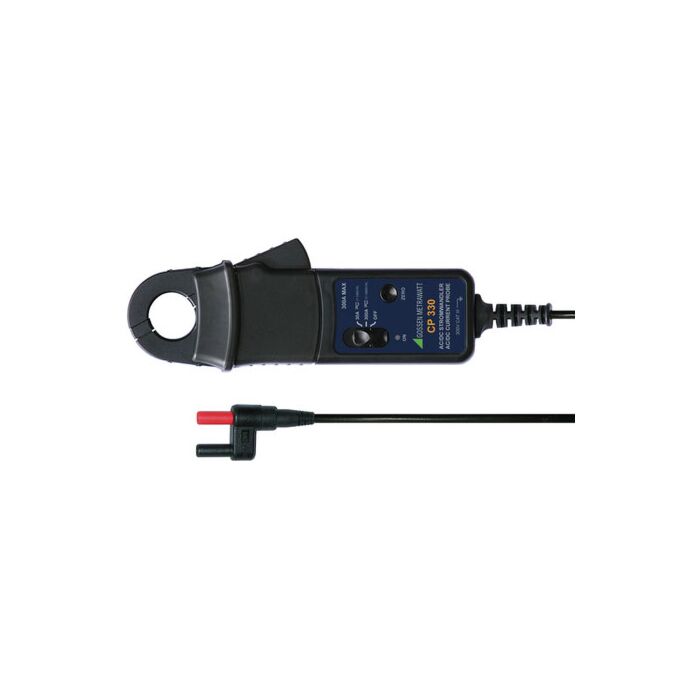

Gossen Metrawatt CP330
Clip-on-current transformer 0.5 -30 / 5 - 300 A DC, 10 mV
Order #: CP330
Mfg #: Z202B
Special Price
$1,018.95
Regular Price
$1,018.96
Gossen Metrawatt CP330
Clip-on-current transformer 0.5 -30 / 5 - 300 A DC, 10 mV
Order #: CP330
Mfg #: Z202B
Special Price
$1,018.95
Regular Price
$1,018.96
he CP30/330 and CP1100/1800 AC / DC current probes have been designed for reliable and accurate, contactless measurement of AC, DC and complex waveform currents.
Using advanced Hall Effect technology they can measure currents accurately.
Availability: Ships in 3-4 weeks
Product Highlights
Using advanced Hall Effect technology they can measure currents accurately.
- AC and DC current measurement for TRMS multimeters High accuracy of 1%
- 50 mA / 100 mA resolution
- Auto Power Off for saving batteries
- High bandwith DC.. 20 kHz
- The transformation ratio can be set directly in the METRAHIT multimeters
- Simple autozeroing via push button
- Type CP30 CP330 CP1100 CP1800
- Measuring range 0 ... 30 A (1) 0 ...30 / 300 A 0...100 / 1000 A 0...125 / 1800 A
- Resolution 1 mA 50 mA/ 100mA 100 mA/ 500mA 100 mA/ 500mA
- Overload capacity 500 A (60s) 600 A (60s) 2000 A (60s) 2000 A (60s)
- Temperature coefficient /°C ±0,01% of rdg. ±0,1 % of rdg. ±0,1 % of rdg. ±0,1 % of rdg.
- Transformation ratio 100 mV/A 10 mV/A,1mV/A 10 mV/A,1mV/A 10 mV/A,1mV/A
- Overall DC accuracy ±1% of rdg.
- ±2mA ±1% of rdg.
- ±50/100 mA ±1% of rdg.
- ±100/500 mA ±1% of rdg.
- ±100/500 mA
- Frequency range DC... 20 kHz
- (-1 dB) DC... 20 kHz
- (-3 dB) DC... 20 kHz
- (-1 dB) DC... 20 kHz
- (-1 dB)
- Clamp opening 25 mm 25 mm 32 mm 32 mm
- Article nummer Z201B Z202B Z203B Z204A
- 1) DC or ACpk
- Operating voltage 300 V ACRMS or DC
