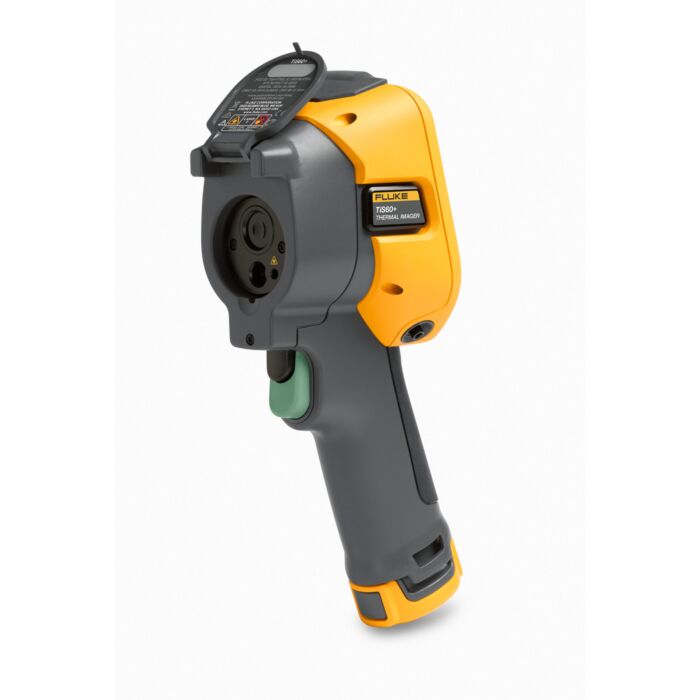

Fluke TIS60+ 30HZ Thermal Imager; GT1; 30 HZ
Thermal Imager; GT1; 30 HZ
Order #: TIS60-PLUS-30HZ
Mfg #: 5133399
$5,698.39
Fluke TIS60+ 30HZ Thermal Imager; GT1; 30 HZ
Thermal Imager; GT1; 30 HZ
Order #: TIS60-PLUS-30HZ
Mfg #: 5133399
$5,698.39
Availability: Ships in 3-4 weeks
Product Highlights
The 320 x 240 resolution Fluke TiS60+ offers the image quality necessary to conduct industrial inspections. Avoid expensive downtime occurrences by capturing the best possible images the first time.
- With the ruggedness and ease of use that you'd expect from Fluke along with sharp, crisp images, this popular pistol grip camera offers a 3.5-inch (landscape) LCD screen for easy issue identification.
- Manage data, capture multiple measurements and organize it by asset with Fluke Connect
- Adjust the level of infrared and visible light with patented IR-Fusion technology
- Simplify work orders with accurate information captured using voice annotation and IR PhotoNotes
- Touchscreen simplicity and point and shoot fixed focus make this camera easy to use with minimal training
Key Attributes
- Infrared Detector Resolution: 320 x 240 (76,800 pixels)
- Display: 3.5 inch, 320 x 240 LCD
- Temperature Range: -20 °C to +400 °C (-4 °F to 752 °F)
- Software: With Fluke Connect images can automatically upload for saving and sharing
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
-
Fluke TI-VISOR Thermal Imager Sun VisorThermal Imager Sun VisorOrder #: 3374437
Mfg #: 3374437
Availability: Ships in 3-4 weeksSpecial Price $119.60 Regular Price $134.39 -
Fluke A3000FC FC Wireless AC Current Clamp ModuleFC Wireless AC Current Clamp Module
Order #: A3000-FC
Mfg #: 4401588
Availability:In stockSpecial Price $304.76 Regular Price $367.19 -
Fluke TI-SBP3 Extra Rechargeable BatteryExtra Rechargeable Battery
Order #: TI-SBP3
Mfg #: 3440365
Availability:In stockSpecial Price $312.79 Regular Price $339.99 -
Fluke T3000FC FC Wireless Type K Temperature ModuleFC Wireless Type K Temperature Module
Order #: T3000-FC
Mfg #: 4401563
Availability:In stockSpecial Price $304.76 Regular Price $367.19 -
Fluke TI-TRIPOD3 Tripod MTG Accessory/Holder for the TI200, TI300 & TI400 Thermal ImagersTripod MTG Accessory/Holder for TI200-TI300-TI400
Order #: TI-TRIPOD3
Mfg #: 4335389
Availability: Ships in 3-4 weeksSpecial Price $178.91 Regular Price $194.47 -
Fluke V3000FC FC Wireless AC Voltage ModuleFC Wireless AC Voltage Module
Order #: V3000-FC
Mfg #: 4401556
Availability: Ships in 3-4 weeksSpecial Price $304.76 Regular Price $367.19 -
Fluke A3001FC FC Wireless IFLEX AC Current ModuleFC Wireless IFLEX AC Current Module
Order #: A3001-FC
Mfg #: 4459439
Availability:In stockSpecial Price $369.78 Regular Price $445.52 -
Fluke TI-CAR Car Charger for TIR/TIR1/TI10/ TI20/TI25 Thermal ImagersCar Charger for TIR/TIR1/TI10/ TI20/TI25
Order #: 98590TE
Mfg #: 3039779
Availability: Ships in 3-4 weeksSpecial Price $225.20 Regular Price $244.79 -
Fluke A3002FC FC Wireless AC/DC Current ModuleFC Wireless AC/DC Current Module
Order #: A3002-FC
Mfg #: 4459442
Availability: Ships in 3-4 weeksSpecial Price $191.88 Regular Price $231.19 -
Fluke FLK-TI-BLUETOOTH Bluetooth Headset for the Ti4/3/200 TIX520/TIX560 Thermal ImagersBluetooth Headset Ti4/3/200 TIX520/TIX560
Order #: TI-BLUETOOTH
Mfg #: 4603258
Availability: Ships in 3-4 weeksSpecial Price $129.80 Regular Price $156.39 -
Fluke TI-SBC3B Charging Base, Power Supply with AdaptersCharging Base,Power Supply w/ Adapters
Order #: TI-SBC3B
Mfg #: 4354922
Availability:In stockSpecial Price $375.35 Regular Price $407.99 -
Fluke 375-FC 600A AC/DC TRMS Wireless Clamp600A AC/DC TRMS Wireless Clamp
Order #: 375-FC
Mfg #: 5065976
Availability:In stockSpecial Price $661.79 Regular Price $788.79 -
Fluke 376 FC 1000A AC/DC Trms wireless clamp with Iflex1000A AC/DC Trms wireless clamp with Iflex
Order #: 376 FC
Mfg #: 5065965
Availability:In stockSpecial Price $753.07 Regular Price $897.59 -
Amprobe TIC-300-PRO High Energy TIC Tracer Non - Contact AC Voltage DetectorHigh Energy TIC Tracer Non - Contact AC Voltage Detector
Order #: TIC-300PRO
Mfg #: 3467441
Availability:In stockSpecial Price $486.07 Regular Price $579.35
| Key features | |
|---|---|
| IFOV (spatial resolution) | 1.86 mRad, D:S 532:1 |
| Infrared resolution | 320 x 240 (76,800 pixels) |
| Field of view | 34.1 °H x 25.6 °H |
| Focus system | Fixed |
| Minimum focus distance | 46 cm (18 in) |
| Ruggedized display | 3.5 inch (8.9 cm landscape) 320 x 240 LCD |
| Ergonomic design | Designed for one-handed use |
| Temperature measurement | |
|---|---|
| Temperature range (not calibrated below -10 °C) | -20 °C to 400 °C (-4 °F to 752 °F) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD) | ≤ 0.045 °C at 30 °C target temp (45 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | No |
| Wireless connectivity | |
|---|---|
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available) |
| Fluke™ Connect app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets optional software | Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location |
| IR Fusion® technology | |
|---|---|
| IR Fusion® technology | Yes |
| AutoBlend™ mode | Yes |
| Picture-In-Picture (PIP) | Yes |
| Built-in digital camera (visible light) | 5MP |
| Level and span | |
|---|---|
| Level and span | Smooth auto and manual scaling |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.5 °C (4.5 °F) |
| Minimum span (in auto mode) | 5 °C (9.0 °F) |
| Data storage and image capture | |
|---|---|
| Extensive memory options | Internal 4GB memory and 4GB micro SD card |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric BMP or JPEG or fully-radiometric is2 |
| Memory review | Yes |
| Software | Fluke Connect desktop software - full analysis and reporting software with access to the Fluke Connect system |
| Analyze and store radiometric data on a PC | Yes |
| Export file formats with Fluke Connect software | is2, BMP, GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset required (sold separately) |
| IR-PhotoNotes | Yes - 3 images |
| Auto capture (temperature and interval) | Yes |
| Battery | |
|---|---|
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery pack with five-segment LED display to show charge level |
| Battery life | 4 hours continuous use per battery pack |
| Battery charging time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable |
| Color palettes | |
|---|---|
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra contrast palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General specifications | |
|---|---|
| Laser pointer | Yes |
| Frame rate | < 9 Hz or 30 Hz |
| Color alarms | High temperature, low temperature, isotherms (within range) |
| Infrared spectral band | 7.5 μm to 14 μm |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10 % to 95 %, non-condensing |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 |
| User defined measurement boxes | Expandable-contractible measurement box |
| Hard case | Rugged hard carrying case with soft transport bag, including adjustable strap |
| Safety standards | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic combability | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | RCM IEC 61326-1 |
| US FCC | EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 |
| Vibration | 2G, IEC 68-2-6 |
| Shock | 25G, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop |
| Sized (H x W x L) | 26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in) |
| Weight (battery included) | 0.72 kg (1.6 lb.) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard) |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
| RoHS compliant | Yes |
