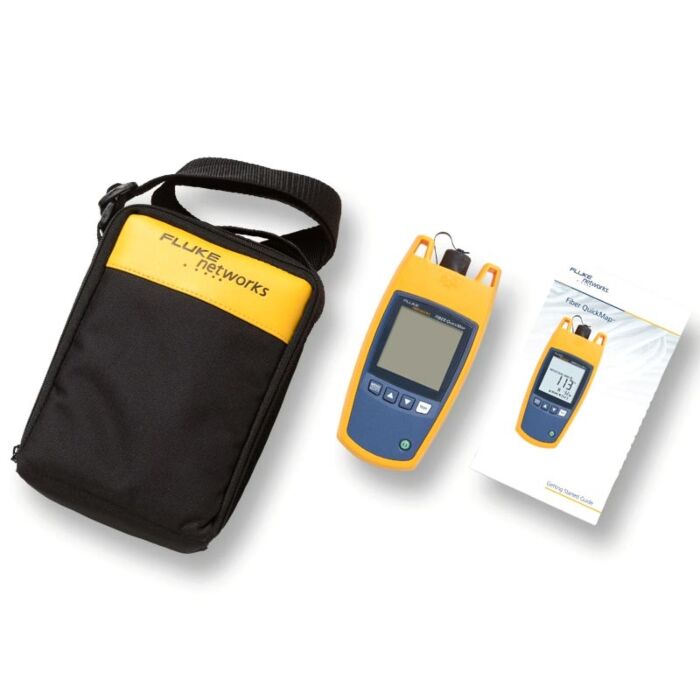

Fluke Networks FQM-M Fiber Quickmap Main; Multimode Fault Finder

Product Highlights

• Works on multimode fiber, 50/125µm and 62.5/125 µm
• 850 nm output wavelength. Measure up to 4,921 feet (1,500 metres) of fiber in seconds
• Locate severe bends, high-loss splices, breaks and dirty connectors in multimode fiber
• Measure and locate high-loss splices
• Locate the end of a fiber
• Find potential sources of high bit error rates caused by reflectance from dirty or poor connections
• Detects live optical signals before it begins testing
• Quick set-up. Connect your fiber and press the Test button. No lengthy set-up necessary
• Find problems quickly. Six-second test time—no more blind troubleshooting that can waste hours
• Change the Index of Refraction (IOR) to improve fiber length accuracy
• Visible in dark areas. Backlighted display turns off automatically
• Removable SC adapter is easily cleaned
• Optional LC, ST and FT interchangeable adapters are available
• Long battery life, 1,500 tests (typical) from 2 AA alkaline batteries
• Rugged construction; vibration and drop tested to 1 meter

Each Unit Includes

• multimode fiber fault locator unit
• screw on interchangeable SC adapter
• 4-language Quick Reference Guide (manuals in 9 languages available on-line)
• safety instruction manual
• batteries
