Fluke FiberInspector™ Fiber Scope
Fluke Networks FiberInspector Pro
Order #: Fluke Networks FiberInspector Pro
Fluke Networks’ FI-7000 FiberInspector Pro allows you to inspect and certify end-faces in 2 seconds so you can get the job done the first time. Automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.
Add the FiberInspector Pro to any unit in the Versiv family of cable testers to add dirt inspection capabilities to your cable and fiber optic certification process.
Why Buy the Fluke FiberInspector Pro from Transcat? Service. Selection. Price.
Transcat is a leading supplier of Fluke Networks Tools, and can offer short or long term rentals on the most popular products. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!
Ordering Guide: Standalone Fiber Inspector or Add-On Versiv Probe
The Fluke Networks FiberInspector Pro can be ordered as both a standalone handheld fiber optic inspection tool, or as an add-on fiber inspection video scope for an existing Versiv mainframe.
| Model | Description |
|---|---|
Standalone Fiber Optic Tester - Includes Versiv Mainframe |
|
FI-7000-W |
The FI-7000 FiberInspector Pro contains:
|
FI-7000-MPO-W |

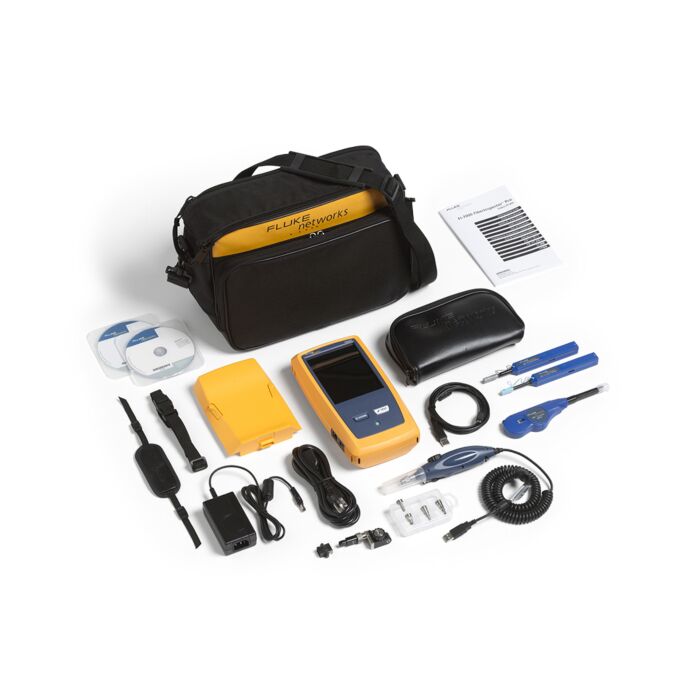

The FI-7000 FiberInspector Pro with MPO contains:
|
Fiber Inspection Probe - Added to Versiv Mainframe for Fiber Optic Scope Functionality |
|
FI-1000 |
A USB Fiber Inspection Video probe which works with the Versiv products (CertiFiber Pro, OptiFiber Pro, DSX CableAnalyzer and OneTouch AT Network Assistant). |
FI-1000-KIT |
A USB Fiber Inspection Video probe for Versiv products plus tip set (LC, FC/SC bulkhead, 1.25 and 2.5mm universal tips in a box). |
Fiber optic connector end-face contamination is a leading cause of fiber failures. Dirt and contaminant cause insertion loss and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time consuming and inaccurate.
Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one fiber optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated fiber optic connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep fiber optic connector end-faces clean. Avoiding this common cause of failure, starts with inspecting the fiber optic connector end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment.
The FI-7000 FiberInspector Pro is a fiber optic inspection scope that allows you to inspect and certify fiber optic connector end-faces in 2 seconds so you can get the job done the first time. This fiber optic inspection scope provides automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.
Product Highlights
- Automated Pass/Fail certification of fiber optic connector end-faces
- Graphical indication of problem areas due to contamination, pits, chips, and scratches
- Certify to industry standards - IEC 61300-3-35
- Eliminate human subjectivity from fiber optic connector end-face measurements
- Save fiber optic connector end-face views during certification process
Specifications
Technical Specifications
| Inspection Probe specifications | |
| 2M pixels | Blue LED |
| Light source | Blue LED |
| Power source | Versiv mainframe |
| Field of View (FOV) | Horizontal: 425 µm |
| Vertical: 320 µm | |
| Minimum detectable particle size | 0.5 µm |
| Dimensions | Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip |
| Weight | 200 g |
| Temperature range | Operating: 32°F to 122°F (0 °C to +50 °C) |
| Storage: -4°F to +158°F (-20°C to +70°C) | |
| Certifications | CE |
| General specifications | |
| Weight | Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg) |
| Dimensions | Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm) |
| Battery | Lithium ion battery pack, 7.2 volts |
| Battery life | Eleven hour with Inspection probe attached |
| Charge Time | |
| Tester Off | Four hours to charge from 10% to 90% capacity |
| Tester On | Six hours to charge from 10% to 90% capacity with the tester on |
| Environmental specifications | |
| Operating temperature* | -18ºC to 45ºC |
| Non-operating temperature | -30ºC to 60ºC |
| Operating altitude | 4,000 m (13123 ft) |
| 3200 m (10,500 ft) with ac adapter | |
| Storage altitude | 12,000 m |
| EMC | EN 61326-1 |
| * Do not keep battery at temperatures below -20°C (-4°F) or above 50°C (122°F) for periods longer than one week to maintain battery capacity. |
-
