Fluke I1000S AC Current Clamp-On Probe, 1000A
AC Current Clamp-On Probe 1000A
Order #: I1000S
Mfg #: 1568487
Special Price
$846.59
Regular Price
$1,019.99
Fluke I1000S AC Current Clamp-On Probe, 1000A
AC Current Clamp-On Probe 1000A
Order #: I1000S
Mfg #: 1568487
Special Price
$846.59
Regular Price
$1,019.99
The Fluke i1000s is a clamp-on AC current probe designed to expand oscilloscope applications in industrial and power environments which makes it ideal for measuring distorted current waveforms and harmonics.
Availability: Ships in 3-4 weeks
Product Highlights
- Fluke Model # I1000S
- 100 mA to 1000A AC RMS (2000A instantaneous peak)
- Maximum Cable Diameter: 2.13 inches
- Weight: 1.21 lbs
- Dimensions: 4.37 x 8.50 x 1.77 inches
Specifications | |
Nominal current range | 10 A 100 A 1000 A |
Continuous current range | 0.1 A - 10 A 0.1 A - 100 A 1 A - 1000 A |
Maximum non-descructive current | 2000 A |
Lowest measureable current | 0.1 |
Basic accuracy | 1% + 1 A (48-65 Hz) (% reading + floorspec) |
Useable frequency | 5 Hz - 100 kHz |
Output level(s) | 100 mv/A 10 mv/A 1 mv/A |
Safety Specifications | |
Safety | CAT III, 600 V CAT IV, 300V |
Maximum voltage | 600 V AC |
Mechanical and General Specifications | |
Warranty | 1 year |
Maximum conductor diameter | 54 mm |
Output cable length | 1.6 m |
BNC adapter | Yes |
All products in this series
-
Fluke 368 FC Wireless Leakage Current ClampWireless Leakage Current ClampSpecial Price $1,061.06 Regular Price $1,278.39
-

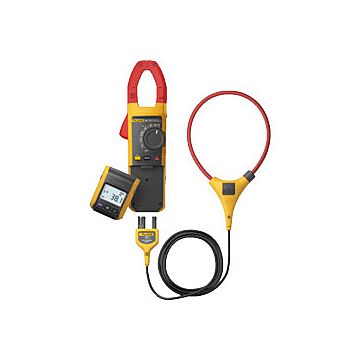

Fluke 381 Remote Display True-rms AC/DC Clamp Meter with iFlexRemote Display True-rms AC/DC Clamp Meter w/iFlexSpecial Price $998.40 Regular Price $1,189.99
-
