Fluke 87V/IMSK Industrial Multimeter Service Combo Kit
Industrial Multimeter Service Combo Kit
Order #: FLUKE-87V/IMSK
Mfg #: 3448783
Special Price
$673.20
Regular Price
$802.39
Fluke 87V/IMSK Industrial Multimeter Service Combo Kit
Industrial Multimeter Service Combo Kit
Order #: FLUKE-87V/IMSK
Mfg #: 3448783
Special Price
$673.20
Regular Price
$802.39
Large Display digits and two-level bright white backlight for increased visibility.
Availability:
In stock
Product Highlights
- Fluke has combined the best selling feature packed 87V Multimeter with the i400 AC Current Clamp
- Together they provide the ability to troubleshoot most industrial problems, providing you with the functionality you need to effectively do your job
- Additionally, the 87V/IMSK kit represents a significant savings over buying the items separately
- Fluke-87V Multimeter with temperature frequency, capacitance 250 µs peak min-max
- 6000 counts, 3-3/4 digits
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- Fluke-i400 AC 400A Current Clamp
- Companion to your DMM to measure up to 400 A AC
- 1mA/Amp output guarantees easy reading on you meter
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a very compact shape
- 22 of the most useful accessories for making measurements in low energy, electronic applications
- 80BK-A thermocouple bead probe
- TL75 test leads
- AC72 Alligator Clips
- Limited Lifetime warranty on Fluke-87V and 1-year warranty on accessories

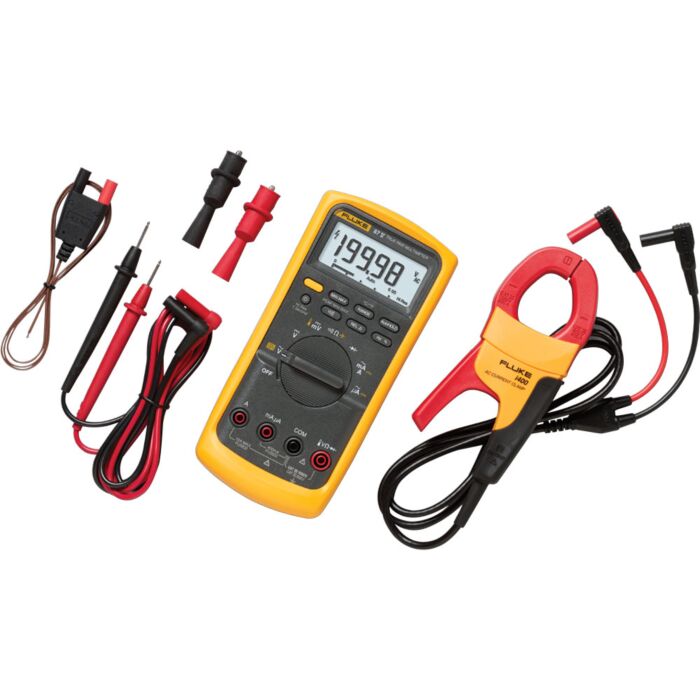

Each Unit Includes
- Fluke-87V Multimeter
- Fluke-i400 AC 400A Current Clamp
- 80BK-A thermocouple bead probe
- TL75 test leads
- AC72 Alligator Clips
Webinars
-
Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke MetersOrder #: C25
Mfg #: 681114
Availability:In stockSpecial Price $62.07 Regular Price $74.79 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability: Ships in 3-4 weeksSpecial Price $124.15 Regular Price $149.59 -
Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability:In stockSpecial Price $62.07 Regular Price $74.79 -
Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $262.43 Regular Price $312.79 -
Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $270.90 Regular Price $326.39 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability: Ships in 3-4 weeksSpecial Price $228.19 Regular Price $271.99 -
Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $62.74 Regular Price $74.79 -
Fluke TL26A 60" 5-Way Test Lead Set60" 5-Way Test Lead Set
Order #: TL26
Mfg #: 1273172
Availability: Ships in 3-4 weeksSpecial Price $102.71 Regular Price $123.75 -
Fluke TL71 Premium Test Lead SetPremium Test Lead Set
Order #: TL71
Mfg #: 1274382
Availability: Ships in 3-4 weeksSpecial Price $49.65 Regular Price $59.83 -
Fluke C35 Soft Carrying Case, Polyester,Black/YellowSoft Carrying Case, Polyester,Black/Yellow
Order #: C35
Mfg #: 2826056
Availability:In stockSpecial Price $49.65 Regular Price $59.83 -
Fluke TL75 Hard Point Test Lead SetHard Point Test Lead Set
Order #: TL75
Mfg #: 855705
Availability:In stockSpecial Price $41.75 Regular Price $50.31 -
Fluke TL40 Retractable Tip Test Lead SetRetractable Tip Test Lead Set
Order #: TL40
Mfg #: 1590606
Availability:In stockSpecial Price $77.87 Regular Price $93.83
| Specifications | ||
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.05% + 1) | |
| Maximum resolution | 10 µV | |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(0.7% + 2) True RMS | |
| AC bandwidth | 20 kHz with low pass filter; 3 db @ 1 kHz | |
| Maximum resolution | 0.1 mV | |
| Current DC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(0.2% + 2) | |
| Maximum resolution | 0.01 µA | |
| Current AC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(1.0% + 2) True RMS | |
| Maximum resolution | 0.1 µA | |
| Resistance | Maximum resistance | 50 MΩ |
| Accuracy | ±(0.2% + 1) | |
| Maximum resolution | 0.1 Ω | |
| Capacitance | Maximum capacitance | 9,999 µF |
| accuracy | ±(1% + 2) | |
| Maximum resolution | 0.01 nF | |
| Frequency | Maximum frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) | |
| Maximum resolution | 0.01 Hz | |
| Duty cycle | Maximum duty cycle | 99.90% |
| Accuracy | ±(0.2% per khz + 0.1%) | |
| Maximum resolution | 0.10% | |
| Temperature measurement | –200.0°C – 1090°C | |
| –328.0°F – 1994.0°F | ||
| excluding probe | ||
| 80 BK temperature probe | –40.0°C – 260°C | |
| –40.0°F – 500°F, 2.2°C or 2% whichever is greater | ||
| Conductance | Maximum conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) | |
| Maximum resolution | 0.01 nS | |
| Diode | Range | 3 V |
| Resolution | 1 mV | |
| Accuracy | ±(2% + 1) | |
| Duty cycle range | Accuracy | Within ±(0.2% per kHz + 0.1%) |
| Environmental Specifications | ||
| Operating temperature | –20°C to + 55°C | |
| Storage temperature | –40°C to + 60°C | |
| Humidity (without condensation) | 0% – 90% (0°C – 35°C) | |
| 0% – 70% (35°C – 55°C) | ||
| Operating Altitude | 2000 m | |
| Safety Specifications | ||
| Overvoltage category | EN 61010–1 to 1000 V CAT III, 600V CAT IV | |
| Agency approvals | UL, CSA, TÜV, VDE listed | |
| Mechanical and General Specifications | ||
| Size | 201 x 98 x 52 mm (with holster) | |
| Weight | 355 g | |
| 624 g – with holster | ||
| Display | Digital | 6000 counts updates 4/sec. |
| 19,999 counts in high–resolution mode | ||
| Analog | 32 segments, updates 40/sec | |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz | |
| Warranty | Lifetime | |
| Battery Life | Alkaline | ~400 hours typical, without backlight |
| Shock | 1 Meter drop per IEC 61010–1:2001 | |
| Vibration | Per MIL–PRF–28800 for a Class 2 instrument | |
