Fluke Networks FI-7000-W FiberInspector Pro 2 Fiber Optic Inspection Scope with Wi-Fi
FiberInspector Pro 2 Fiber Opti Inspection Scope with Wi-Fi

Order #: FI2-7000

Mfg #: 4955978

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $6,354.58 Regular Price $6,354.59

Fluke Networks FI-7000-W FiberInspector Pro 2 Fiber Optic Inspection Scope with Wi-Fi

FiberInspector Pro 2 Fiber Opti Inspection Scope with Wi-Fi

Order #: FI2-7000

Mfg #: 4955978

Special Price $6,354.58 Regular Price $6,354.59
Fluke Networks' FI-7000 FiberInspector Pro with Wi-Fi adapter enables you to quickly inspect and certify fiber end-faces inside ports or patch cords. The Fluke Networks Versiv family of cable testers offer modular solutions for every copper and fiber cable testing application. Check out our Fluke FiberInspector Fiber Scope product page to view all of your ordering options.
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States only.
This product is available for shipping to the United States only.
This product is available for shipping to the United States only.

Product Highlights

Fiber optic connector end-face contamination is a leading cause of fiber failures. Dirt and contaminant cause insertion loss and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time consuming and inaccurate.

Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one fiber optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated fiber optic connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep fiber optic connector end-faces clean. Avoiding this common cause of failure, starts with inspecting the fiber optic connector end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment.

The FI-7000 FiberInspector Pro is a fiber optic inspection scope that allows you to inspect and certify fiber optic connector end-faces in 1 seconds so you can get the job done the first time. This fiber optic inspection scope provides automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.

  • Automated Pass/Fail certification of fiber optic connector end-faces
  • Graphical indication of problem areas due to contamination, pits, chips, and scratches
  • Certify to industry standards - IEC 61300-3-35
  • Eliminate human subjectivity from fiber optic connector end-face measurements
  • Save fiber optic connector end-face views during certification process
  • Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection

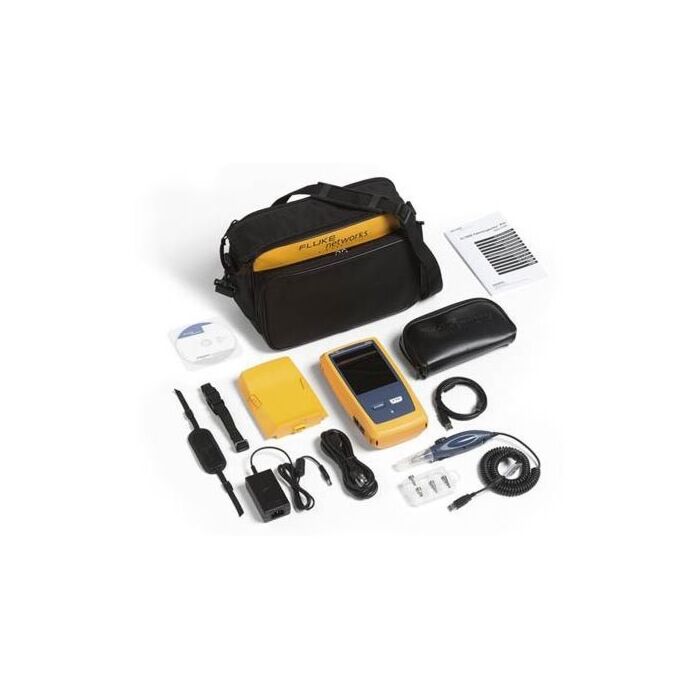

Each Unit Includes

  • The FI-7000 FiberInspector Pro contains: Versiv Mainframe, USB Fiber Inspection Video Probe with 4 tips in a box (LC, FC/SC bulkhead, 1.25 and 2.5mm universal), Blank Module to protect the mainframe™s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Versiv Open Source Software CD, Wi-Fi adapter, Getting Started Guide, Soft Carrying Case
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

Specifications

Technical Specifications

Inspection Probe specifications
2M pixelsBlue LED
Light sourceBlue LED
Power sourceVersiv mainframe
Field of View (FOV)Horizontal: 425 µm
Vertical: 320 µm
Minimum detectable particle size0.5 µm
DimensionsApproximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip
Weight200 g
Temperature rangeOperating: 32°F to 122°F (0 °C to +50 °C)
Storage: -4°F to +158°F (-20°C to +70°C)
CertificationsCE

General specifications
WeightMainframe with module and battery: 3 lbs, 5 oz (1.28 kg)
DimensionsMainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm)
BatteryLithium ion battery pack, 7.2 volts
Battery lifeEleven hour with Inspection probe attached

Charge Time
Tester OffFour hours to charge from 10% to 90% capacity
Tester OnSix hours to charge from 10% to 90% capacity with the tester on

Environmental specifications
Operating temperature*-18ºC to 45ºC
Non-operating temperature-30ºC to 60ºC
Operating altitude4,000 m (13123 ft)
3200 m (10,500 ft) with ac adapter
Storage altitude12,000 m
EMCEN 61326-1

* Do not keep battery at temperatures below -20°C (-4°F) or above 50°C (122°F) for periods longer than one week to maintain battery capacity.
