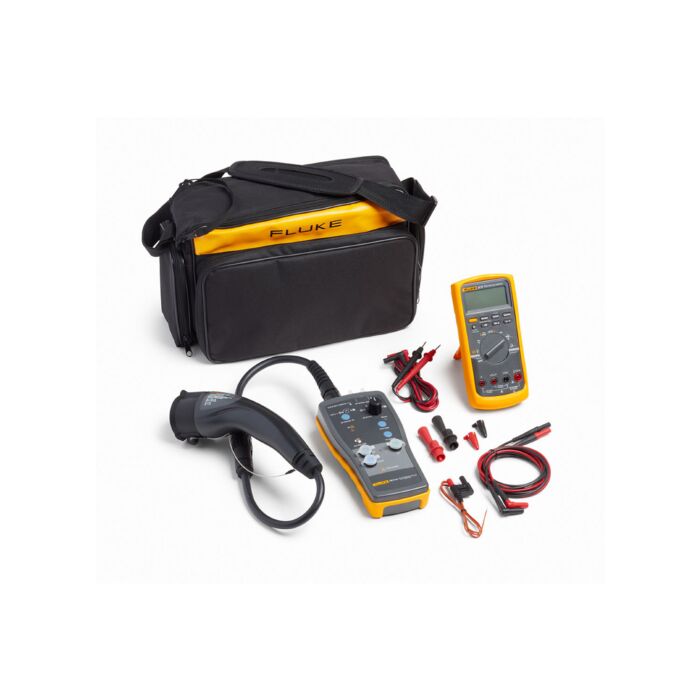

Fluke FEV100/TY1 KIT Test Adapter EV Charging with Type 1 Plug, 87V, Tl224, US
Test Adapter EV Charging w/ Type 1 Plug, 87V, Tl224, US
Order #: FEV100-TY1-KIT
Mfg #: 5348150
$2,219.39
Fluke FEV100/TY1 KIT Test Adapter EV Charging with Type 1 Plug, 87V, Tl224, US
Test Adapter EV Charging w/ Type 1 Plug, 87V, Tl224, US
Order #: FEV100-TY1-KIT
Mfg #: 5348150
$2,219.39
Availability: Call for availability
Product Highlights
Fluke FEV100/TY1 KIT contains the Fluke product for the electric vehicle charging segment. Designed to test function and safety of electric vehicles charging stations, recommended to comply with SAE-J1772 standards for US stations. Provides critical protective ground testing of the station, GFCI troubleshooting and CP communication stages between vehicle and station. Paired with the 87-V multimeter and test leads to test voltage and maximum charging current.
- The Fluke FEV100 KIT includes an adaptor that simulates the presence of an electrical vehicle to test the functionality and safety of an electric vehicle AC charging station.
- Check that an electric vehicle charging station is correctly wired and that protective earth is functioning properly with the PE pre-test feature.
- Perform GFCI troubleshooting of an electric vehicle charging station and verify it is functioning properly for safety.
- Test different charging states of an electric vehicle charging station with the turn of a button. Verify the charging voltage using the 87-V digital multimeter.
Key Attributes
- Ac Output Voltage: Max. 250 V / 60 Hz, CAT II 300 V
- Application: A: ± 12V 1kHz; B: 2.74kϛ +9 V / -12V 1kHz; C: 882ϛ +6 V / -12V 1kHz; D: 246ϛ +3V / -12V 1kHz
- Application: Compatibility with other test and measurement tools, 87V included.
- Application: Protective grounding test (PE), GFCI test, simulate PE + CP Errors
Key Uses of this Product
- Simulates electric vehicle and vehicle faults
- Adapter paired with test and measurement tools
- Tests mains supply and grounding
- Tests GFCI ground fault circuit interrupter
Each Unit Includes
-
FEV100
- Fluke FEV100/BASIC Test Adapter
- Fluke FEV-CON/TY1 Type 1 Connector & Cable
- Soft Carrying Case
- User Manual
- 3-year warranty
- 87V
- Fluke 87V Industrial Multimeter
- TL75 Test Leads (TL175 Eur)
- AC175 Alligator Clips
- Holster with tilt-leg, test lead storage
- 80BK Temperature Probe
- 9V Battery (Installed)
- TL224
- One pair (red, black) silicone insulated leads with one straight female coupler on one end and right angled on the other
- One-year warranty
- Quick Reference Guide
-
Fluke FEV-CON-TSL Tesla Type Plug For Test Adapter EV Charging, USTesla Type Plug For Test Adapter EV Charging, USOrder #: FEV-CON-TSL
Mfg #: 5348145
Availability: Ships in 3-4 weeksSpecial Price $575.45 Regular Price $693.32
| Fluke FEV100 Electric Vehicle Charging Station Test Adapter specifications | |
| Input voltage | UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal |
| EV connector (EVC-13) | SAE J1772 socket, 16 A (type 1, 5P single-phase) |
| Internal power consumption | 2 W max. |
| Operating temperature | -4 °F to 104 °F (-20 °C to 40 °C) |
| Storage temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Operating humidity range | 10 % to 85 % relative humidity non-condensing |
| Storage relative humidity | 0 % to 85 % non-condensing |
| Operating altitude | 6561 ft (2000 m) max. |
| Dimensions (H x W x D) | Approx. 8.66 x 4.33 x 1.77 in (220 x 110 x 45 mm) without cable assembly |
| Weight | Approx. 4.4 lb (2 kg) |
| Safety standards | IEC 61010-1, Pollution Degree 2 IEC 61010-2-030 |
| Measurement category | CAT II 250 V |
| IP protection class | IP54 |
| Electromagnetic Compatibility (EMC) | |
| International | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
| Functions | |
| CP States | A, B, C, D |
| CP Error "E" | On/off |
| PE Error | On/off |
| GFCI Test | Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms |
| PE Pre-Test (typical) | Visible indication >30 V on PE conductor |
| Outputs (for test purpose only) | |
| Measuring terminals L1, L2/N, PE |
Max. 250 V 50/60 Hz, CAT II 250 V |
| CP signal output terminals | Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE |
| Fluke 87V Industrial Multimeter Specifications | ||
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.05% + 1) | |
| Maximum resolution | 10 µV | |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(0.7% + 2) True RMS | |
| AC bandwidth | 20 kHz with low pass filter; 3 dB @ 1 kHz | |
| Maximum resolution | 0.1 mV | |
| Current DC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(0.2% + 2) | |
| Maximum resolution | 0.01 µA | |
| Current AC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(1.0% + 2) True RMS | |
| Maximum resolution | 0.1 µA | |
| Resistance | Maximum resistance | 50 MΩ |
| Accuracy | ±(0.2% + 1) | |
| Maximum resolution | 0.1 Ω | |
| Capacitance | Maximum capacitance | 9,999 µF |
| accuracy | ±(1% + 2) | |
| Maximum resolution | 0.01 nF | |
| Frequency | Maximum frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) | |
| Maximum resolution | 0.01 Hz | |
| Duty cycle | Maximum duty cycle | 99.9% |
| Accuracy | ±(0.2% per kHz + 0.1%) | |
| Maximum resolution | 0.1% | |
| Temperature measurement | -200.0 °C - 1090 °C -328.0 °F - 1994.0 °F excluding probe |
|
| 80 BK temperature probe | -40.0 °C - 260 °C -40.0 °F - 500 °F, 2.2 °C or 2% whichever is greater |
|
| Conductance | Maximum conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) | |
| Maximum resolution | 0.01 nS | |
| Diode | Range | 3 V |
| Resolution | 1 mV | |
| Accuracy | ±(2% + 1) | |
| Duty cycle range | Accuracy | Within ±(0.2% per kHz + 0.1%) |
| Environmental Specifications | ||
| Operating temperature | -20 °C to + 55 °C | |
| Storage temperature | -40 °C to + 60 °C | |
| Humidity (without condensation) | 0% - 90% (0 °C - 35 °C) 0% - 70% (35 °C - 55 °C) |
|
| Operating Altitude | 2000 m | |
| Safety Specifications | ||
| Overvoltage category | EN 61010-1 to 1000 V CAT III, 600V CAT IV | |
| Agency approvals | CE, CSA, RCM | |
| Mechanical and General Specifications | ||
| Size | 201 x 98 x 52 mm (with holster) | |
| Weight | 355 g 624 g - with holster |
|
| Display | Digital | 6000 counts updates 4/sec. 19,999 counts in high-resolution mode |
| Analog | 32 segments, updates 40/sec | |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz | |
| Warranty | Lifetime | |
| Battery Life | Alkaline | ~400 hours typical, without backlight |
| Shock | 1 Meter drop per IEC 61010-1:2001 | |
| Vibration | Per MIL-PRF-28800 for a Class 2 instrument | |
