Fluke FEV-CON-TSL Tesla Type Plug For Test Adapter EV Charging, US
Tesla Type Plug For Test Adapter EV Charging, US

Order #: FEV-CON-TSL

Mfg #: 5348145

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $575.45 Regular Price $693.32

Fluke FEV-CON-TSL Tesla Type Plug For Test Adapter EV Charging, US

Tesla Type Plug For Test Adapter EV Charging, US

Order #: FEV-CON-TSL

Mfg #: 5348145

Special Price $575.45 Regular Price $693.32
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Fluke FLK-FEV-CON-TSL is a Tesla type connector for Level 1 and Level 2 AC charging stations. This accesory pairs with the FEV100, the first Fluke product for the electric vehicle charging segment. The FEV100 is designed to test function and safety of electric vehicles charging stations.

  • Fluke FLK-FEV-CON-TSL is a Tesla type charging connector. It can be ordered as an accessory to the FEV100 as an add to test AC charging stations.
  • The Fluke Tesla type connector fits with the FEV100 adaptor, that simulates the presence of an electrical vehicle to test the functionality and safety of an electric vehicle AC charging station.
  • Check that an electric vehicle charging station is correctly wired and that protective earth is functioning properly with the PE pre-test feature.
  • Test different charging states of an electric vehicle charging station with the turn of a button. Verify the charging voltage using a digital multimeter.

Key Attributes

  • CP State Simulation: A: ± 12V 1kHz; B: 2.74kϛ +9 V / -12V 1kHz; C: 882ϛ +6 V / -12V 1kHz; D: 246ϛ +3V / -12V 1kHz
  • Output voltage : Max. 250 V / 60 Hz, CAT II 300 V
  • Compatibility with other test and measurement tools : Digital multimeter, oscilloscope
  • Safety Testing : Protective grounding test (PE), GFCI test

Key Uses of this Product

  • Connector for FEV100 that simulates electric vehicle and vehicle faults
  • Amphenol connector for easy connection to FEV100
  • Simulates Electric Vehicle
  • Connection point to Tesla Type Connectors on EV Charging station
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

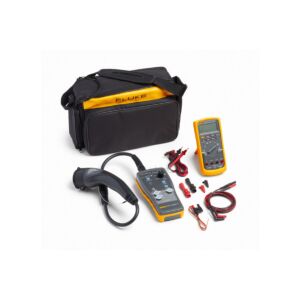

  1. Fluke FEV100/TY1 KIT Test Adapter EV Charging w/ Type 1 Plug, 87V, Tl224, US
    Fluke FEV100/TY1 KIT Test Adapter EV Charging with Type 1 Plug, 87V, Tl224, US
    Test Adapter EV Charging w/ Type 1 Plug, 87V, Tl224, US

    Order #: FEV100-TY1-KIT

    Mfg #: 5348150

    Availability: Call for availability
    $2,219.39
  2. Fluke FEV100/TY1 KIT2 Test Adapter EV Charging w/Type 1 Plug, 125B, 87V, Tl224, US
    Fluke FEV100/TY1 KIT2 Test Adapter EV Charging with Type 1 Plug, 125B, 87V, Tl224, US
    Test Adapter EV Charging w/Type 1 Plug, 125B, 87V, Tl224, US

    Order #: FEV100-TY1-KIT2

    Mfg #: 5348161

    Availability: Ships in 3-4 weeks
    $5,890.99

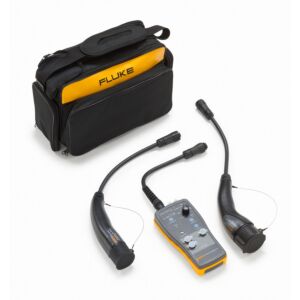

  3. Fluke FEV100/TY1 & TSL Test Adapter EV Charging w/ Type 1 & Tesla Type Plug, US
    Fluke FEV100/TY1 & TSL Test Adapter EV Charging with Type 1 & Tesla Type Plug, US
    Test Adapter EV Charging w/ Type 1 & Tesla Type Plug, US

    Order #: FEV100-TY1-TSL

    Mfg #: 5348051

    Availability: Ships in 1-2 weeks
    $2,266.65
Safety IEC 61010-1, IEC 61010-2-030, pollution degree 2
Ratings CAT II 250 V, maximum 1000 mA
Environmental Conditions Operating temperature: -4 to 104°F (-20 to 40°C)
Storage temperature: -4 to 122°F (-20 to 50°C)
Operating humidity range: 10 to 85% RH, non-condensing
Storage relative humidity: 0 to 85%, non-condensing
Operating altitude: 6561' (2000 m) maximum
Length Approximately 23.2" (590 mm) including connectors
Weight Approximately 1.2 lbs (550 g)
