Fluke Networks CFP-100-QI/GLD CertiFiber Pro 2 Quad OLTS, Inspection, Wi-Fi, 1 Year Support

CertiFiber Pro 2 Quad OLTS, Inspection, Wi-Fi, 1 Yr Support

Order #: CFP2-100-QI/GLD

Mfg #: 4955822

Questions about availability or need help? Contact Us:

(800) 633-0561 sales@transcat.com

$34,711.48

Qty

Fluke Networks CFP-100-QI/GLD CertiFiber Pro 2 Quad OLTS, Inspection, Wi-Fi, 1 Year Support

CertiFiber Pro 2 Quad OLTS, Inspection, Wi-Fi, 1 Yr Support

Order #: CFP2-100-QI/GLD

Mfg #: 4955822

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$34,711.48

The Fluke Networks CFP-100-QI-W is the CertiFiber Pro Quad OLTS with a double ended inspection kit and 1 year Gold Support. The Fluke Networks Versiv family of cable testers offer modular solutions for every copper and fiber cable testing application. Check out our OptiFiber Pro product page to view all of your ordering options.

Availability: Ships in 3-4 weeks

This product is available for shipping to the United States only.

Product Overview

Product Highlights

Fastest time to certify two fibers at two wavelengths in three seconds.
Encircled Flux compliant as required by ANSI/TIA and ISO/IEC
Merged Tier 1 (Basic) / Tier 2 (Extended) testing and reporting when paired with OptiFiber Pro
ProjX management system ensures all jobs are completed correctly and efficiently
Provides automatic Pass/Fail analysis to industry standards or custom test limits
Double ended Pass/Fail certification of fiber optic connector end faces
Graphical indication of problem areas on fiber end faces due to contamination, pits, chips and scratches
Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
Taptive user interface provides simple, animated guidance to eliminate incorrect reference setup and negative losserrors.
Convenient quad module supports both multimode and singlemode loss testing
Extended singlemode distance range to 130km
Built in Visual Fault Locator
Analyze test results and create professional test reports using LinkWare Management Software
Compatible with Linkware Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Management Software.

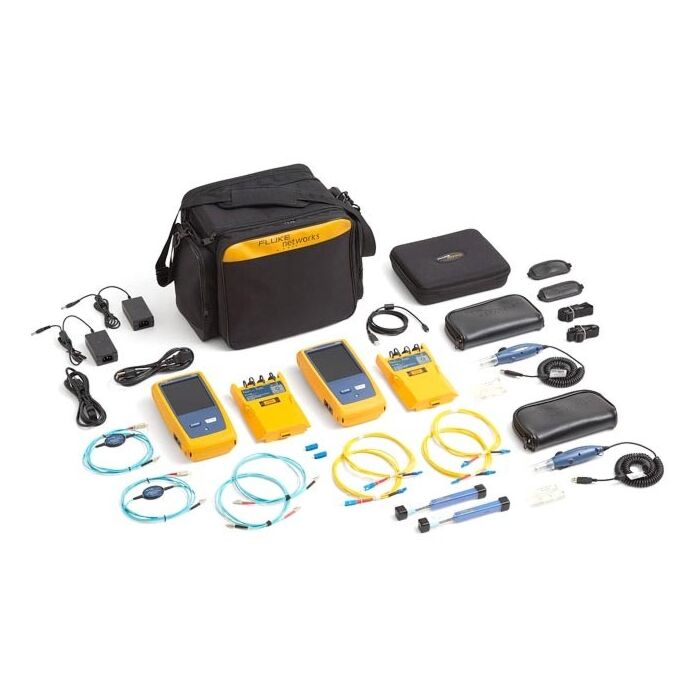

Each Unit Includes

(2) Versiv Mainframes
(2) CertiFiber Pro Quad OLTS Modules
(2) USB fiber inspection video probes each with 4 tips
Multimode Encircled Flux compliant test reference cord kit (2m) for testing 50um LC terminated fibers (2 SC/LC, 2 LC/LC)
Singlemode test reference cord kit (2m) for testing 9um LC terminated fibers (2 SC/LC, 2 LC/LC) TRC Carrying Case
(2) 1.25 mm Quick Clean Cleaners
(2) 2.5 mm Quick Clean Cleaners
(2) LC/LC Adaptors
(2) Hand Straps
(2) Shoulder Straps
Carry Case
USB Interface Cable
Versiv Open Source Software CD
(2) AC Chargers
WiFi adapter
Statement of Calibration and Getting Started Guide
1 Year Gold Support

Specifications

Power Meter Specifications
Input Connector	Interchangeable connector adapter (LC standard, SC, ST and FC optional)
Detector Type	InGaAs
Wavelengths	850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range	0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Power Measurement Uncertainty^1,2	< +/- 5% +/- 32 pW
Measurement Linearity³	< ± 0.1 dB
Re-calibration Period	1 year
1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 _W (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 _m and NA = 0.14 for 9/125 _m. Ambient temperature 23° ± 1°C. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23° ± 1°C. After a 5 minute warm-up.

Loss/Length Specifications
Specification	CertiFiber Pro Multimode Modules	CertiFiber Pro Singlemode Modules
Testing Speeds (excludes referencing times)	Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection) Far End Source mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) Loopback mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection)
Input/Output Connectors	Interchangeable connector adapter (LC standard, SC, ST and FC optional)
Launch Condition^1,2	Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1
Fiber Types Tested	50/125 µm or 62.5/125 µm	singlemode
Source Type and Wavelengths	LED source 850 nm ± 30 nm 1300 nm ± 20 nm	Fabry-Perot laser diode 1310 nm ± 20 nm 1550 nm ± 30 nm
Maximum Length Measurement	12 km	130 km
Length Measurement Accuracy	± 1.5 m plus ± 1 % of length	± 1.5 m plus ± 1 % of length
Output Power (Nominal)	≥ -24 dBm with EF-TRC	≥ -4 dBm
Output Power Stability³	± 0.05 dB over 8 hours ± 0.03 dB over 15 minutes	± 0.1 dB over 8 hours ± 0.08 dB over 15 minutes
1. At the output of the EF-TRC 2. Variations between EF measurement equipment may occur but EF compliance can be expected with a 95% confidence factor 3. Relative to power level after 15 minute warm up – at constant temperature

Loss/Length Specifications (continued)
Source Wavelengths	850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range	0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Power Measurement Uncertainty^{1, 2}	< +/- 5% +/- 32 pW
Measurement Linearity³	< ± 0.1 dB
Re-calibration Period	1 year
1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 _W (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 _m and NA = 0.14 for 9/125 _m. Ambient temperature 23° ± 1°C. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23° ± 1°C. After a 5-minute warm-up.

Selected Specifications
Visual Fault Locator (VFL)
Title	Requirement
Output Power	>-5 dBm <0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector
Operating Wavelength	650 nm nominal
Output Modes	Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency)
Connector Adapter	2.5 mm universal
Laser Safety	Class II CDRH Over operating temperature range

Environmental Specifications
Title	Requirement
Operating Temperature	-18° C to 45° C
Storage Temperature	-30° C to +60° C
Operating Relative Humidity % RH without condensation	0 % to 90 %, 32 °F to 95 °F (0° C to 35° C) 0 % to 70 %, 95 °F to 113 °F (35° C to 45° C)
Vibration	Random, 2 g, 5 Hz-500 Hz
Shock	1 m drop test with and without module and adapters
Safety	CSA C22.2 No. 1010.1: 1992 EN 61010-1 1st Edition + Amendments 1, 2
Pollution Degree	2
Altitude	Operating: 4,000 m; storage: 12,000 m
EMC	EN 61326–1
