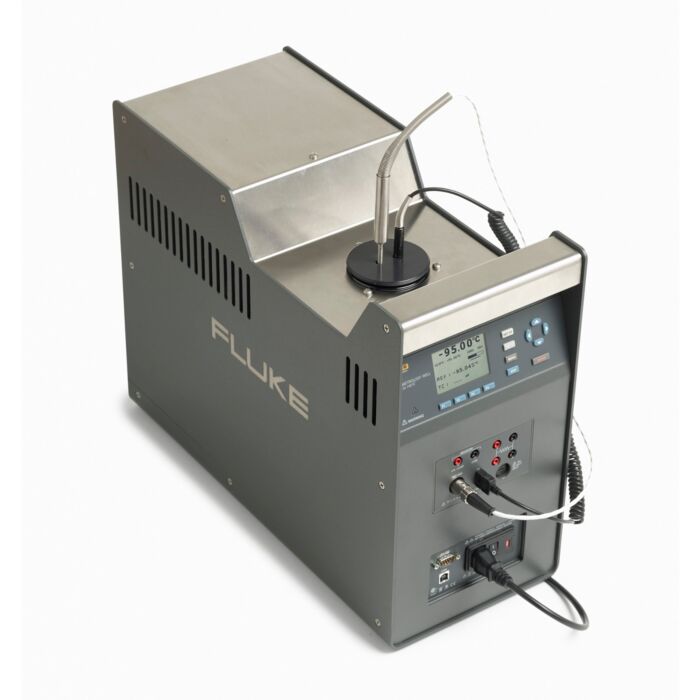

Fluke Calibration 9190A-F-P-156 Dry-Well Ultra-Cold Calibrator, Insert F, 115V
Dry-Well Ultra-Cold Calibrator, Insert F & Built-in Elct, 115V
Order #: 9190A-F-P-156
Mfg #: 4179045
$35,138.60
Fluke Calibration 9190A-F-P-156 Dry-Well Ultra-Cold Calibrator, Insert F, 115V
Dry-Well Ultra-Cold Calibrator, Insert F & Built-in Elct, 115V
Order #: 9190A-F-P-156
Mfg #: 4179045
$35,138.60
Availability: Ships in 3-4 weeks
Product Highlights
- Ultra-cool dry-block calibrator with best-in-class stability
- Wide temperature range: -95 °C to 140 °C
- Best-in-class stability: ± 0.015 °C full range
- Excellent accuracy: ± 0.05 °C with external reference
- Fast cooling time: 23 °C to -95 °C in 90 minutes
- Best measurement practices: Conforms to EURAMET cg-13 guidance
- Immersion depth 160 mm (6.3 in)
- Size (H x W x D) 480 x 205 x 380 mm (18.8 x 8.0 x 14.9 in)
- Weight 16 kg (35 lb)
Each Unit Includes
- 9190-INSX Insert (X=A,B,C,D,E, or F)
- 6-foot Mains Power Cord
- USB Cable
- Getting Started Manual
- Product CD that contains manuals and remote interface driver files
- 9930 Interface-It Calibration Software and Users Guide
- Report of Calibration and Calibration Label
- Well Insulator Cap
- Insert Removal Tool
- 4 Clamp-on Ferrites (-P model only)
- 6-pin DIN Connector (-P model only)
- Test Lead Kit (-P model only)
