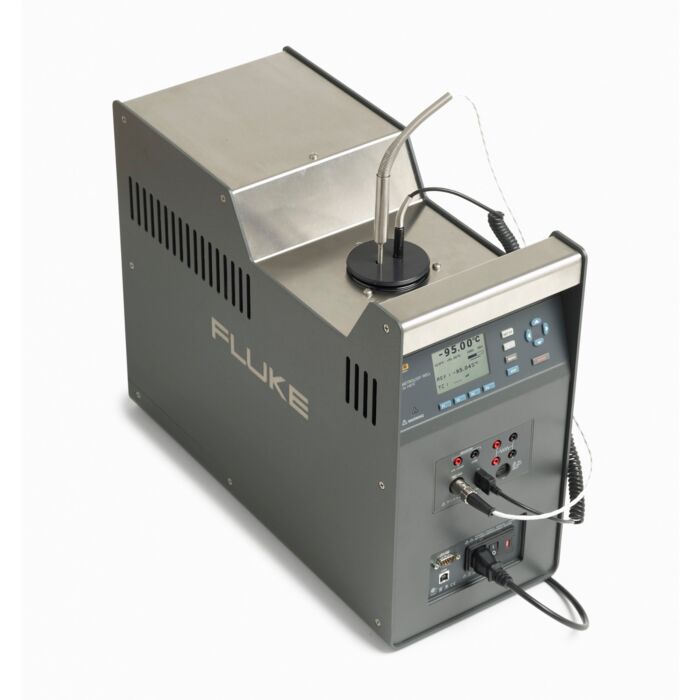

Fluke Calibration 9190A-E-156 Dry-Well Ultra-Cold Calibrator with Insert E, 115V

Product Highlights

Calibration baths are the most stable and uniform temperature sources available, but they aren’t a good fit for clean rooms. The size of a bath limits its portability, and bath fluids can easily spill and give off vapors. The 9190A Ultra-Cool Field Metrology Well is a great alternative. Its wide temperature range brackets the coldest and highest temperature ranges required for pharmaceutical, biomedical and food processing applications. The 9190A is small and lightweight, making it easy to transport. And since it does not use heat transfer fluids, clean rooms stay clean. The 9190A cooling and heating times are faster than a calibration bath—that means calibration work gets done more quickly.

Unreliable process measurements can have a damaging impact on business, leading to poor product quality, recalls, fines, waste, and lost profits. Ultimately, measurements are only as good as the temperature sources used to calibrate the measurement equipment. The 9190A Ultra-Cool Field Metrology Well incorporates the best technology and design expertise gained from decades of dry-block development experience. The 9190A conforms with EURAMET cg-13 guidelines for best measurement practices for temperature block calibrators. As a result, you can be assured that the 9190A specifications for accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, loading, and hysteresis have been thoroughly and carefully defined and tested. With a 9190A Ultra-Cool Field Metrology Well, you can be confident you’re using the most accurate and stable ultra-cool dry-block calibrator available. And that will have a positive impact on your business.

• Ultra-cool dry-block calibrator with best-in-class stability
• Wide temperature range: -95 °C to 140 °C
• Best-in-class stability: ± 0.015 °C full range
• Excellent accuracy: ± 0.05 °C with external reference
• Fast cooling time: 23 °C to -95 °C in 90 minutes
• Best measurement practices: Conforms to EURAMET cg-13 guidance
• Immersion depth 160 mm (6.3 in)
• Size (H x W x D) 480 x 205 x 380 mm (18.8 x 8.0 x 14.9 in)
• Weight 16 kg (35 lb)

Each Unit Includes

• 9190-INSX Insert (X=A,B,C,D,E, or F)
• 6-foot Mains Power Cord
• USB Cable
• Getting Started Manual
• Product CD that contains manuals and remote interface driver files
• 9930 Interface-It Calibration Software and Users Guide
• Report of Calibration and Calibration Label
• Well Insulator Cap
• Insert Removal Tool
