Fluke Calibration 5615-12-A Secondary PRT Probe, 100 ohm, 1/4 x 12"
Secondary PRT Probe, 100 ohm 1/4 x 12"

Order #: 5615-12-A

Mfg #: 3055399

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,305.80

Fluke Calibration 5615-12-A Secondary PRT Probe, 100 ohm, 1/4 x 12"

Secondary PRT Probe, 100 ohm 1/4 x 12"

Order #: 5615-12-A

Mfg #: 3055399

$2,305.80
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

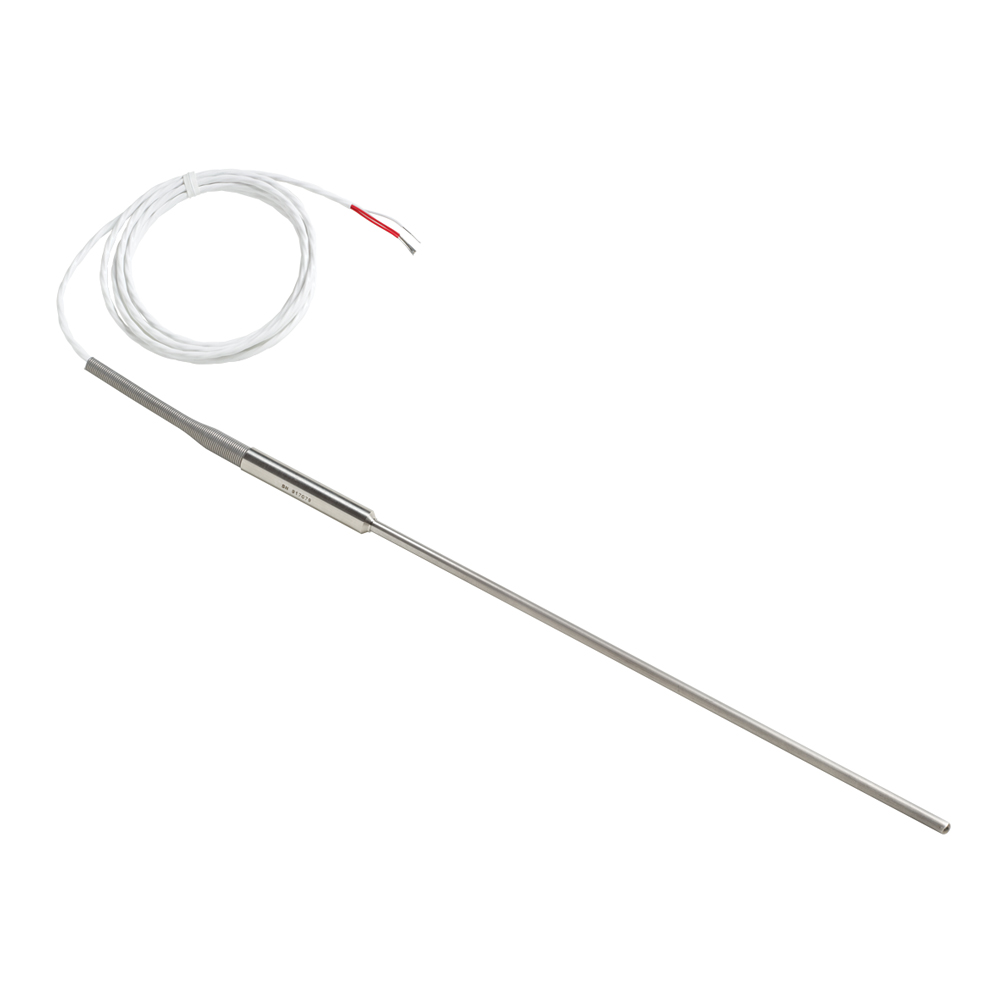

  • The 5615-12 is a Platinum Resistance Thermometer (PRT) with an Inconel™ 600 sheath that's 305 mm (12 in) long and 6.35 mm (0.250 in) in diameter
  • It is a secondary reference temperature standard designed to bridge the gap between the highest laboratory standards and industrial or second-tier lab locations
  • It has short-term accuracy of ±0.013 °C at 0.01 °C
  • The element is constructed of reference-grade platinum wire (99.999 % pure) for excellent stability
  • The wire is wound in a coil and placed in a mandrel where it's uniformly supported in a manner that virtually eliminates hysteresis
  • The electrical configuration is a four-wire current-potential hookup that eliminate the effects of lead-wire resistance
  • These Inconel™-sheathed probes have a fully supported sensing element, making them more durable than SPRTs
  • The element is protected in an ultrahigh-purity ceramic case with a hermetic glass seal to improve output stability by locking out moisture and contaminants
  • This probe comes calibrated with ITS-90 coefficients, making it compatible with many excellent readout devices, including Hart's 1529 Chub-E4, 1560 Black Stack, and 1502A Tweener
  • It bridges the gap between a 100-ohm industrial RTD and an SPRT
