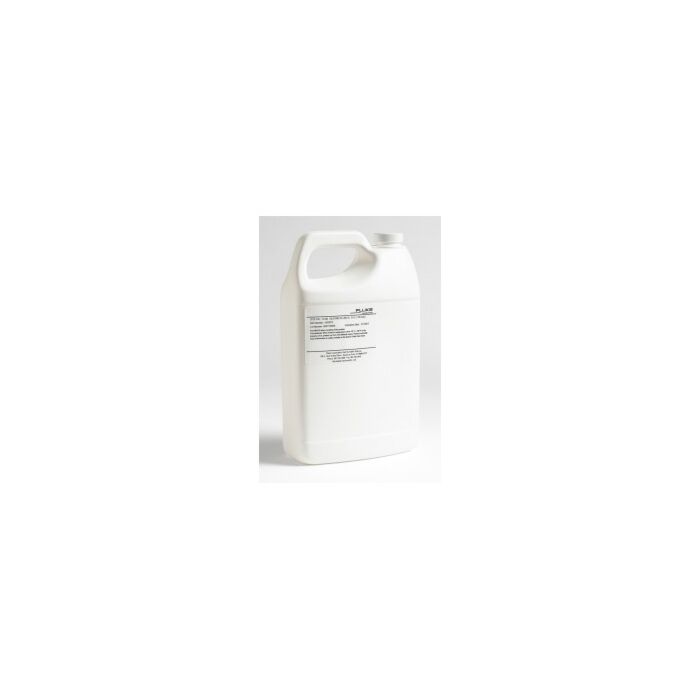

Fluke Calibration 5012-3.8L Silicone Oil, Type 200.10, 3.8 liters (1 Gal)
Silicone Oil Type 200.10,1 gal. -30C to 209C,3.8 liters

Order #: 23060T-GAL

Mfg #: 2430079

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,115.80

Fluke Calibration 5012-3.8L Silicone Oil, Type 200.10, 3.8 liters (1 Gal)

Silicone Oil Type 200.10,1 gal. -30C to 209C,3.8 liters

Order #: 23060T-GAL

Mfg #: 2430079

$1,115.80
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Silicone Oil
  • Type 200.10
  • 1 gallon
  • -30°C to 160°C

It’s important to understand a few specifications before selecting a bath fluid. We’ve seen bath fluids advertised with a temperature range that spans from the freezing point to the flash point or beyond.

For example, type 710 silicone oil has a freezing point of –22°C, but freezing point has nothing to do with the point at which the oil becomes so thick it cannot be properly stirred. Type 710 oil should really only be used down to about 80°C. It’s a viscosity issue, not a freezing-point issue. Usable range is the question. Suitability for calibration work is the specification that counts.

The usable viscosity range is determined by your bath’s stirring or pumping design. Fluke Calibration baths can be operated using fluids with up to 50 centistokes viscosity. This gives you additional usable range in the lower temperature levels of the fluid.

Some baths advertised as calibration baths require fluids with 10 centistokes or less viscosity to operate properly. The usable ranges in our table on the previous page assume the use of a Fluke bath.

In addition to range and viscosity issues, there are a number of other issues to consider when choosing a bath fluid. The other considerations are:

  • Thermal characteristics
  • Lifetime
  • Change in characteristics due to temperature cycling
  • Absorption of water from the air
  • Vaporization—fumes and fume hood requirements
  • Expansion due to heat
  • Contamination—mixing oils or introducing contamination with unclean probes
  • Conductivity properties
  • Effects of using fluids outside of their range—fire, explosion, polymerization
  • Effects of altitude on boiling point
