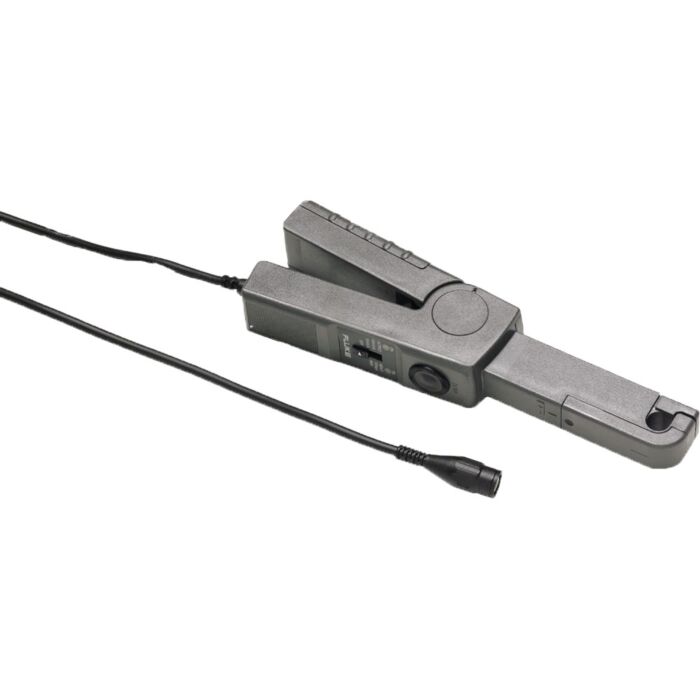

Fluke 80I-110S AC/DC AC/DC Current Clamp
AC/DC Current Probe, Scopemeter(R)

Order #: 80I-110S

Mfg #: 114519

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,444.31

Fluke 80I-110S AC/DC AC/DC Current Clamp

AC/DC Current Probe, Scopemeter(R)

Order #: 80I-110S

Mfg #: 114519

$1,444.31
The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.
Specifications
Nominal current range 10 A, AC/DC
100 A, AC/DC
Continuous current range 0.1 A - 10 A AC/DC
1 A - 100 A AC/DC
Maximum non-destructive current 140 A - 2 kHz
Lowest measurable current 0.1 A
Basic accuracy 100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA
10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA
40 A to 80 A ±12% of reading +50 mA
80 to 100 A ±15% of reading
Useable frequency DC - 100 kHz
Output level(s) 10 A range: 100 mV/A
100 A range: 10 mV/A
Zero error adjustment Yes
Safety Specifications
Safety CAT II, 600 V
CAT III, 300 V
Maximum voltage 600 V
Mechanical and General Specifications
Warranty 1 year
Battery life 9 V, 55 h
Maximum conductor diameter 11.8 mm
Output cable length 1.6 m
BNC adapter Yes
