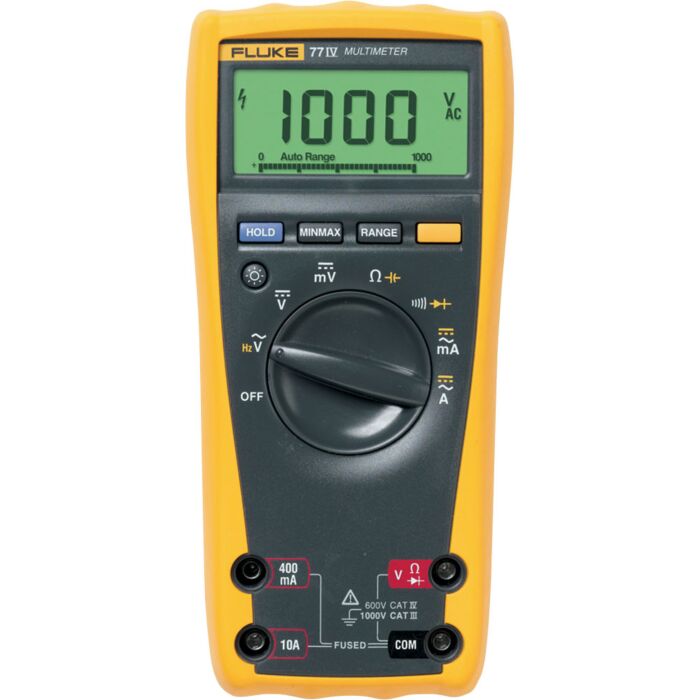

Fluke 77-IV Digital Multimeter 77-4
Digital Multimeter 77-4
Order #: 65244MM
Mfg #: 2727486
Special Price
$473.52
Regular Price
$564.39
Fluke 77-IV Digital Multimeter 77-4
Digital Multimeter 77-4
Order #: 65244MM
Mfg #: 2727486
Special Price
$473.52
Regular Price
$564.39
Availability: Ships in 1-2 weeks
Overview
Versatile meters for field service or bench repair.
The Fluke 77 IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.
It measures:
- Wide 1000 V measurement range
- Average responding AC measurements
- 0.3% accuracy
- 10 Amps continuous (20 A for 30 seconds)
- Frequency and capacitance
- Resistance and continuity
Product Highlights
- 6,000 Count
- Wide 1000 V measurement range
- Average responding AC measurements
- 0.3% accuracy
- 10 Amps continuous (20A for 30 seconds)
- Frequency and capacitance
- Resistance and continuity
- Large display
- Backlight for work in dim areas
- Min / Max to record signal fluctuations
- Ergonomic overmolded housing with integrated probe holders
- Free your hands with the optional TPAK magnetic hanger
- Auto and Manual ranging
- Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards
- Replaces the 77
- Battery
- Test Leads
- User Manual
Each Unit Includes
Webinars
-
Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke MetersOrder #: C25
Mfg #: 681114
Availability:In stockSpecial Price $62.07 Regular Price $74.79 -
Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability: Ships in 3-4 weeksSpecial Price $62.07 Regular Price $74.79 -
Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $270.90 Regular Price $326.39 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability:In stockSpecial Price $228.19 Regular Price $271.99 -
Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $237.03 Regular Price $285.59 -
Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $62.74 Regular Price $74.79 -
Fluke TL224 SureGrip Silicon Test LeadsSureGrip Silicon Test Leads
Order #: TL24
Mfg #: 1610198
Availability:In stockSpecial Price $49.65 Regular Price $59.83 -
Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $262.43 Regular Price $312.79 -
Fluke 80PK-8 Probe Pipe Clamp, Temperature ProbeProbe Pipe Clamp, Temperature Probe
Order #: 80PK-8
Mfg #: 200360
Availability:In stockSpecial Price $270.90 Regular Price $326.39 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability: Ships in 2-3 weeksSpecial Price $124.15 Regular Price $149.59 -
Fluke I410 AC/DC Clamp-on Current Probe, 400AAC/DC Clamp-on Current Probe, 400A
Order #: I-410
Mfg #: 617727
Availability:In stockSpecial Price $376.53 Regular Price $448.79 -
Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability:In stockSpecial Price $51.91 Regular Price $62.55
| Specifications | ||
| Voltage DC | Range | 6.000 V – 1000 V |
| Best accuracy | ±(0.3% + 1) | |
| Best resolution | 0.1 mV | |
| Voltage AC | Range | 600.0 mV – 1000V |
| Best accuracy | ±(2.0% + 2) | |
| Best resolution | 1.0 mV | |
| Amps AC | Range | 60.00 mA – 10 A |
| Best accuracy | 2.5% + 2 | |
| Best resolution | 0.01 mA | |
| Amps DC | Range | 60.00 mA – 10A |
| Best accuracy | 1.5% + 2 | |
| Best resolution | 0.01 mA | |
| Resistance | Range | 600.0 Ω – 50 MΩ |
| Best accuracy | ±(0.5% + 1) | |
| Best resolution | 0.1 Ω | |
| Capacitance | Range | 1nF – 9,999 μF |
| Best accuracy | ±(1.2% + 2) | |
| Best resolution | 1 nF | |
| Frequency | Range | 99.99Hz – 99.99kHz |
| Best accuracy | ±(0.1% + 1) | |
| Best resolution | 0.01 Hz | |
| Safety | ANSI / ISA S82.02.01, CSA C22.2–1010.1, IEC 61010 to 1000 V Measurement Category III, 600 V Measurement Category IV | |
| Certifications | CSA, TÜV (EN61010), Π, (N10140) | |
| General Specifications | ||
| Maximum voltage between any terminal and earth ground | 1000 V | |
| Surge protection | 8 kV peak per IEC 61010 | |
| Ω Fuse for mA inputs | 440 mA, 1000 V FAST Fuse | |
| Ω Fuse for A inputs | 11 A, 1000 V FAST Fuse | |
| Display | Digital | 6000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec | |
| Frequency | 10,000 counts | |
| Capacitance | 1,000 counts | |
| Altitude | Operating | 2,000 meters |
| Storage | 12,000 meters | |
| Temperature | Operating | -10°C to + 50°C |
| Storage | -40°C to + 60°C | |
| Temperature coefficient | 0.1 x (specified accuracy / °C (< 18°C or > 28°C) | |
| Electromagnetic compatibility | In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: | |
| (EN 61326–1:1997) | specified accuracy ±5°C (9°F) | |
| Relative humidity | 90% to 35°C | |
| (maximum non-condensing) | 75% to 40°C | |
| 45% to 50°C | ||
| Battery life | 400 hours typical (alkaline) | |
| Size (H x W x L) | 4.3 x 9 x 18.5 cm | |
| Weight | 420 g | |
