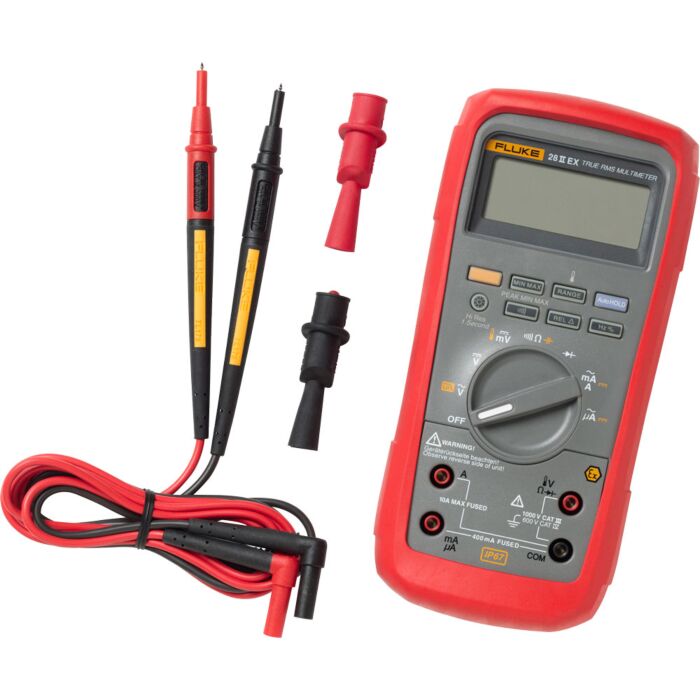

Fluke 28 II EX IS True-RMS Digital Multimeter with ETL Approval
IS True-RMS Digital Multimeter w/ETL Approval
Order #: 28IIEX
Mfg #: 4017176
$3,399.99
Fluke 28 II EX IS True-RMS Digital Multimeter with ETL Approval
IS True-RMS Digital Multimeter w/ETL Approval
Order #: 28IIEX
Mfg #: 4017176
$3,399.99
Overview
Now there's one intrinsically safe digital multimeter (DMM) you can use in IIC (gas), in Zone 1 and 2 and IIIC (dust), Zone 21 and 22. Whether you work in petroleum, chemical, or pharmaceutical environments, all the test and troubleshooting power you need is packed into the most rugged intrinsically safe (IS) DMM Fluke has ever built. The Fluke 28 II Ex is also waterproof, dust-proof and drop-proof. You'll be equipped to handle any situation, inside and outside of hazardous zones, without compromising compliance or measurement performance.
Product Highlights
- 4-1/2 Digit Mode for Precise Measurements (20,000 Counts)
- True-RMS AC Voltage and Current for Accurate Measurement on Nonlinear Signals
- Measures up to 1000v and 10a AC And DC (Note That Ex Zones Require Reduced Measurements)
- Low Pass Filter Ensures Accurate Voltage and Frequency Measurements on Variable Speed Motor Drives (VSDs)
- Frequency to 200 kHz and % Duty Cycle to Help You Diagnose VSDs and Switching Power Supplies
- Resistance, Continuity and Diode Test
- 10,000 Mf Capacitance Range for Components and Motor Caps
- Conductance Measurements for High Resistance or
- Leakage Tests
- Min/Max-Average and Peak Capture to Record Transients and Variations Automatically
- Relative Mode to Remove Test Lead Interference on Resistance Measurements
- Auto and Manual Ranging for Maximum Flexibility
- Input Alert Protects You by Chirping and Flashing "Lead" When Leads are Plugged into the Wrong Inputs Important Extras Keep You Productive All Day Long in Less than Optimal Conditions
- Backlit Keypad Buttons Provide Extra Visibility in Poorly Lit Areas, Even when You're Wearing Full PPE
- Large Display Digits and 2-Level Bright White Backlight also Increases Visibility
- Long Battery Life - 400 Hours Typical without Backlight (Alkaline)
- Optional Magnetic Hanger for Easy Setup and Viewing While Freeing Your Hands for Other Tasks
Webinars
-
Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke MetersOrder #: C25
Mfg #: 681114
Availability:In stockSpecial Price $62.07 Regular Price $74.79 -
Fluke FL-45 EX Intrinsically safe flashlight, 45 Lumens outputIntrinsically safe flashlight, 45 lumens output
Order #: FL-45 EX
Mfg #: 4972422
Availability: Ships in 3-4 weeksSpecial Price $79.87 Regular Price $89.75 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:In stockSpecial Price $124.15 Regular Price $149.59 -
Fluke FL-120 EX Intrinsically safe flashlight, 120 Lumens outputIntrinsically safe flashlight, 120 light output
Order #: FL-120 EX
Mfg #: 4972431
Availability: Ships in 3-4 weeksSpecial Price $127.08 Regular Price $142.79 -
Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability:In stockSpecial Price $62.07 Regular Price $74.79 -
Fluke FL-150 EX Intrinsically safe flashlight, 150 Lumens outputIntrinsically safe flashlight, 150 light output
Order #: FL-150 EX
Mfg #: 4972446
Availability: Ships in 3-4 weeksSpecial Price $152.50 Regular Price $171.35 -
Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability: Ships in 2-3 weeksSpecial Price $262.43 Regular Price $312.79 -
Fluke HL-200 EX Intrinsically safe headlamp, 200 Lumens outputIntrinsically safe headlamp, 200 light output
Order #: HL-200 EX
Mfg #: 4972410
Availability: Ships in 3-4 weeksSpecial Price $157.64 Regular Price $171.35 -
Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability: Ships in 3-4 weeksSpecial Price $270.90 Regular Price $326.39 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability: Ships in 3-4 weeksSpecial Price $228.19 Regular Price $271.99 -
Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $62.74 Regular Price $74.79
| Accuracy Specifications | ||
| Accuracy specifications are shown as ±(% of reading + number of digits) | ||
| DC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | ±0.05% + 1 | |
| AC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | ±0.7% +4 | |
| DC current | Range | 0.1 μA to 10 A |
| Accuracy | ±0.2% + 4 | |
| AC current | Range | 0.1 μA to 10 A |
| Accuracy | ±1.0% + 2 | |
| Resistance | Range | 0.1 Ω to 50 MΩ |
| Accuracy | ±(0.2% + 1) | |
| Conductance | Range | 60.00 nS |
| Accuracy | ±(1.0% + 10) | |
| Diode test | Range | 2.0 V |
| Accuracy | ±(2.0% + 1) | |
| Duty cycle | Range | 0.0% to 99.9% |
| Accuracy | Within ±(0.2% per kHz + 0.1%) for rise times <1 µs | |
| Capacitance | Range | 10 nF to 9999 μF |
| Accuracy | ±(1.0% + 2) | |
| Frequency | Range | 0.5 Hz to 199.99 kHz |
| Accuracy | ±(0.005% + 1) | |
| Temperature | Range | -200°C to +1090°C (-328°F to +1994°F) |
| Accuracy | ±(1.0% + 10)°C [±(1.0% + 10)°F] | |
| Display counts | 6000 counts/19,999 counts in high-resolution mode | |
| Peak capture | Record transients up to 250 us | |
| Min/Max/Avg recording | Display signals up to approximately 100 ms | |
| Accuracy specifications are shown as ±(% of reading + number of digits) | ||
| Safety Certifications | ||
| ATEX | II 2 G Ex ia IIC T4 Gb | |
| II 2 D Ex ia IIIC T130°C Db | ||
| I M1 Ex ia I Ma | ||
| NEC-500 | Class I, Div 1, Groups A-D, 130°C | |
| IEXEx | Ex ia IIC T4 Gb | |
| Ex ia IIIC T130°C Db | ||
| Ex ia I Ma | ||
| GOST R Ex | Overvoltage protection: Measurement Category III, 1000 V, Pollution Degree 2 | |
| Measurement Category IV, 600 V, Pollution Degree 2 | ||
| IP rating IP67 | ||
| General Specifications | ||
| Power | ||
| Three AAA batteries | ||
| Battery life: 400 hours | ||
| Display | LCD, with backlight | |
| External protection | Rubber holster | |
| Warranty | Three years | |
| Size with holster (H x W x L) | 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) | |
| Weight with holster | 698.5 g (1.54 lb) | |
